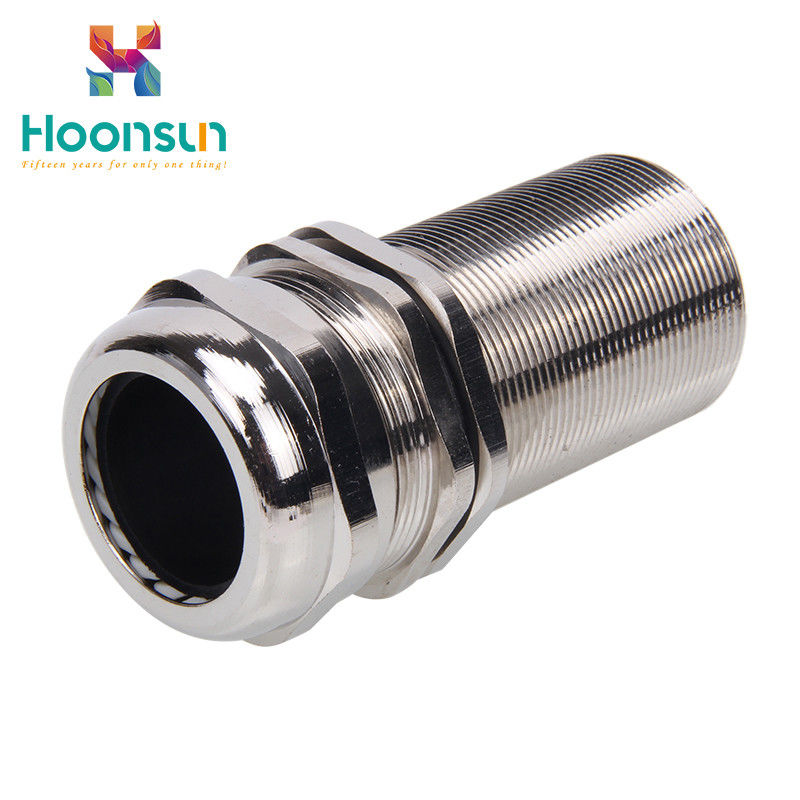

ROHS / CE Approval Brass Cable Gland Longer Thread Nickel Plated Material

ROHS / CE Approval Brass Cable Gland Longer Thread Nickel Plated Material

    • ROHS / CE Approval Brass Cable Gland Longer Thread Nickel Plated Material
    • ROHS / CE Approval Brass Cable Gland Longer Thread Nickel Plated Material
    • ROHS / CE Approval Brass Cable Gland Longer Thread Nickel Plated Material
  • ROHS / CE Approval Brass Cable Gland Longer Thread Nickel Plated Material

    Product Details:

    Place of Origin: Zhejiang,China
    Brand Name: Hnx waterproof cable gland
    Certification: RoHS, ISO, CE, IP68,REACH
    Model Number: PG Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: Negotiation
    Packaging Details: 38*25*17mm
    Delivery Time: 3-30 Day
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 30000 Pieces/Day
    Contact Now
    Detailed Product Description
    Material: Nickel-plated Brass Claw: PA(Nylon)
    Max Temperature: 100℃(Dynamic State) Performance: Waterproof , Flameproof
    Surface Treatment: Electroplating Model NO.: PG7-PG48

    ROHS / CE Approval Brass Cable Gland Longer Thread Nickel Plated Material



    Product details:

    Our products are complete in specifications, with M, PG, G and NPT threads. We can choose the type according to the thread size of the joint and the diameter of the clamping cable. The reasonable use of our cable joints within the prescribed scope can effectively improve the tensile and waterproof properties. The waterproof grade of our products can reach IP68, and can adapt to the static working temperature of -40 C -120 C. The short time can reach 120 degrees C, the adaptation range of the dynamic environment is -20 C -80 C, and the short time can reach 100 degrees C.

    Resistance to salt, acid, alcohol, oil and other general solvents, suitable for oil, chemical, mechanical, nuclear power, shipbuilding, paper, pharmaceutical, food, aerospace and other fields. Our products consist of tight nut, seal, clamping jaw, main body, O ring and nut.

    Nut, nut, main body: nickel plated brass (stainless steel)

    1. Claw: nylon plastic PA66, UL94-V2
    2. Seal: NBR, silicone rubber
    3. Waterproofing ring: NBR, silicone rubber

    Advantage:
    1. high corrosion resistance. This product is mainly made of brass, with nickel plated surface and excellent corrosion resistance.
    2. good performance - good waterproof performance, waterproof grade to IP68, good temperature resistance, can withstand the temperature of -40 to 100 degrees C, in a short time can bear 120 degrees.
    3. pollution-free products passed the European RoHS certification, do not release harmful substances, do not cause pollution to the environment.
    4. no rust. The surface of the product is nickel plated, the oxidation resistance is strong, and it is not easy to rust in damp environment.
    5. patented product, exclusive patent product, accept different sizes of customization.



    Item Range
    (mm)
    GL
    Thread Length
    (mm)
    AG
    Thread O.D.
    (mm)
    H
    Joint Length
    (mm)
    Spanner size
    (mm)
    Code
    PG7 3-6.5 10 12.5 17 14/15 HX-NPPG7L
    PG9 4-8 12 15.2 19 17/18 HX-NPPG9L
    PG11 5-10 12 18.6 21 20/21 HX-NPPG11L
    PG13.5 6-12 12 20.4 22 22/23 HX-NPPG13.5L
    PG16 10-14 12 22.5 23 24/25 HX-NPPG16L
    PG21 13-18 12 28.3 27 30 HX-NPPG21L
    PG29 18-25 15 37.0 31 40 HX-NPPG29L
    PG36 25-33 15 47.0 37 50 HX-NPPG36L
    PG42 32-38 15 54.0 37 57 HX-NPPG42L
    PG48 37-44 18 59.3 38 64 HX-NPPG48L



    Usage method:

    the connector can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.

    access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.

    the equivalent wire and cable can be used to clamp the cable and achieve the purpose of waterproofing.

    the main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable joint to ensure its safe and reliable operation. If the sealing is bad, not only will the oil leakage cause the drying of the oil impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.



    Main function:

    Keep the line unobstructed, keep the cable sealed, ensure the insulation grade at the cable connector of the cable certificate, and ensure its safe and reliable operation. If the seal is not good, it will not only cause the oil-immersed paper to dry up due to oil leakage, but also moisture will invade the inside of the cable, which will reduce the insulation performance of the paper.
