Dustproof G3/4 Customized IP68 Watertight Cable Gland G Thread SS316L / 304

Dustproof G3/4 Customized IP68 Watertight Cable Gland G Thread SS316L / 304

  • Dustproof G3/4 Customized IP68 Watertight Cable Gland G Thread SS316L / 304
  • Dustproof G3/4 Customized IP68 Watertight Cable Gland G Thread SS316L / 304
Dustproof G3/4 Customized IP68 Watertight Cable Gland G Thread SS316L / 304
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx cable gland
Certification: RoHS, ISO, CE, IP68,REACH
Model Number: NPT Type
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: SS304 / SS316L Function: Protect Cable
Max Temperature: 100 ℃ Performance: Watertight,Dustproof,Acid Resistance, Etc.
Wire Range: 13-18 Mm Wire / Cable Model NO.: G 3/4
High Light:

ss cable gland

,

steel cable gland



Waterproof G3/4 Customized IP68 G Thread SS316L / 304 Cable Gland

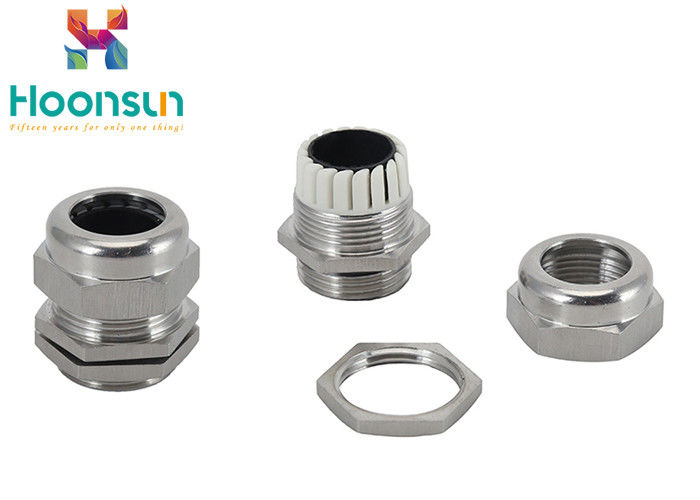

Product details
- Sealing nut
- Nut
- Main body
- Clamping claw
-Sealing material
- Ring

Product certification
- European CE,  ROHS,REACH certification
- Precision thread, tightly connected
- Seal rubber ring, effective seal
- Protection degree up to IP68
- Special clamping claws and clamping rings are sealed and fastened together with the tightening nut, thus clamping the cable in a large range.
- Strong tensile strength, waterproof, dustproof, salt - resistant, acid and alkali - resistant, alcohol, oil, ester and other common solvents.
- Offshore operations, mine machinery, chemical equipment and other harsh working occasions.


Product performance
- waterproof, dust-proof, corrosion resistant and non polluting. It has the characteristics of strong anti stamping, isolation and explosion-proof.
- The products are suitable for cable connection of circuit, electric box and transportation equipment, industrial machinery and equipment, wind energy industry, solar energy industry and so on.
- The installation is very simple. Just insert the cable through the assembled gland and tighten the compression nut until the cable is fixed.



Item


Range


GL


H


Thread O.D.
AG mm


Spanner size


Code

G1/4 3-6.5 7 19 13.1 14 HX-SSG1/4
G3/8 4-8 8 21 16.6 17/20 HX-SSG3/8
G1/2 6-12 8 22 20.9 22/23 HX-SSG1/2
G3/4 13-18 9 25 26.4 30 HX-SSG3/4
G1 18-25 10 29 32.2 40 HX-SSG1/2
G1-1/4 25-33 11 35 41.9 50 HX-SSG1-1/4
G1-1/2 32-38 12 37 47.8 57/55 HX-SSG1-1/2
G2 37-44 14 38 59.6 65 HX-SSPG2
G2-1/2 42-52 16 42 75.1 78 HX-SSG2-1/2
G3 65-70 18 45 88 94 HX-SSG3


Characteristics
-Strong antioxidation, no rust
- Do not release harmful substances, pollution-free
- The use of stainless steel, high hardness
-The grade of waterproof is IP68
- A temperature of 120 degrees Celsius in a short period of time in a static environment.


FAQ
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the goods are in stock. Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment ≤ 1000USD, 100% in advance. Payment ≥ 1000USD, 30% T/T in advance, balance before shipment.
Q: How about the after-sale service?
A: Any feedback or comments are welcomed. We will try to make the best assistant to let you maximum satisfaction.
