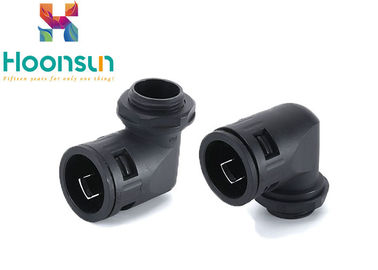

Black Nylon Liquid Tight Conduit Connector Right Angle For Flexible Pipes

Black Nylon Liquid Tight Conduit Connector Right Angle For Flexible Pipes

  • Black Nylon Liquid Tight Conduit Connector Right Angle For Flexible Pipes
  • Black Nylon Liquid Tight Conduit Connector Right Angle For Flexible Pipes
Black Nylon Liquid Tight Conduit Connector Right Angle For Flexible Pipes
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx Nylon Cable Gland
Certification: RoHS, ISO, CE, IP68
Model Number: M, PG Type
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: PANYLON,UL94-V2, BLACK Certificate: CE RoHS IP68 UL
Function: Protect Cable Performance: Fireproof,dustproof
Item: PG36 Conduit Size: AD42.5
High Light:

plastic cable glands

,

rubber cable gland



Nylon Liquid Tight Conduit Connector Right Angle For Flexible Pipes



Spiral teeth specification

  • M, PG thread

Product material

  • Made of UL approved nylon PA66 (fireproof grade UL94-V2).

Working temperature

  • Static -40 to 100 C, heat resistance to 120 C in a short time, dynamic -20 to 80 C, and heat resistance to 100 C in a short time.

Product characteristics

  • Special clamping claw design, clamping hose, strong pulling resistance, quick dismounting and loading and unloading, and improving installation efficiency.

Color

  • Black, gray, other colors can be customized.

Features

  • Special design of inner latch and body, loading and unloading only need no tools.

Advantage

  • It has good technical performance. It has the functions of vibration resistance, impact resistance, corrosion resistance, dustproof, waterproof and radiation protection, so as to ensure the equipment works stably and reliably. It has good usability and protective facilities, and is convenient for operation, installation and maintenance. Easy to produce, assemble, debug and pack and transport. Beautiful, applicable and harmonizing color.



Item Conduit size Thread O.D. Thread Length Code
M12×1.5 AD10.0 12 10 HX-NLFM12-10
M16×1.5 AD13.0 16 11.5 HX-NLFM16-13
M16×1.5 AD15.8 16 12 HX-NLFM16-15.8
M20×1.5 AD18.5 20 12 HX-NLFM20-18.5
M20×1.5 AD21.2 20 13 HX-NLFM20-21.2
M25×1.5 AD25.0 25 13 HX-NLFM25-25
M25×1.5 AD28.5 25 13 HX-NLFM25-28.5
M32×1.5 AD34.5 32 15 HX-NLFM32-34.5
M40×1.5 AD42.5 40 15 HX-NLFM40-42.5
M50×1.5 AD54.5 50 15 HX-NLFM50-54.5
PG7 AD10.0 12.3 10 HX-NLFPG7-10
PG9 AD13.0 15 11.5 HX-NLFPG9-13
PG11 AD15.8 18.4 12 HX-NLFPG11-15.8
PG13.5 AD18.5 20.4 12 HX-NLFPG13.5-18.5
PG16 AD21.2 22.3 13 HX-NLFPG16-21.2
PG19 AD25.0 25 13 HX-NLFPG19-25
PG21 AD28.5 28 13 HX-NLFPG21-28.5
PG29 AD34.5 36.7 15 HX-NLFPG29-34.5
PG36 AD42.5 46.7 15 HX-NLFPG36-42.5
PG48 AD54.5 59 16 HX-NLFPG48-54.5



Usage

1. nylon cable waterproof connector is a supporting article for cables, which is mainly used in distribution boxes and distribution cabinets.

2. The connector can lock the cable, and the other end can be connected to the upper part of the equipment box body, or can be threaded according to the selection.

3. connect to electric equipment with internal threads at the inlet and outlet. General machinery control box, distribution board, machinery.

5. according to the installation materials produced, they can be divided into heat shrink type ( the most commonly used type ), dry wrap type, epoxy resin pouring type and cold shrink type.

6. according to the core material, it can be divided into copper core power cable connector and aluminum core power cable connector.

7. the main function is to keep the line unobstructed, keep the cable sealed, and ensure the insulation grade at the cable joint, so as to ensure its safe and reliable operation. If the seal is not good, it will not only cause the oil-immersed paper to dry up due to oil leakage, but also moisture will invade the inside of the cable, which will reduce the insulation performance of the paper.



Company advantages

1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.

2. automatic production of numerical control equipment, accurate and safe

3. 2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
