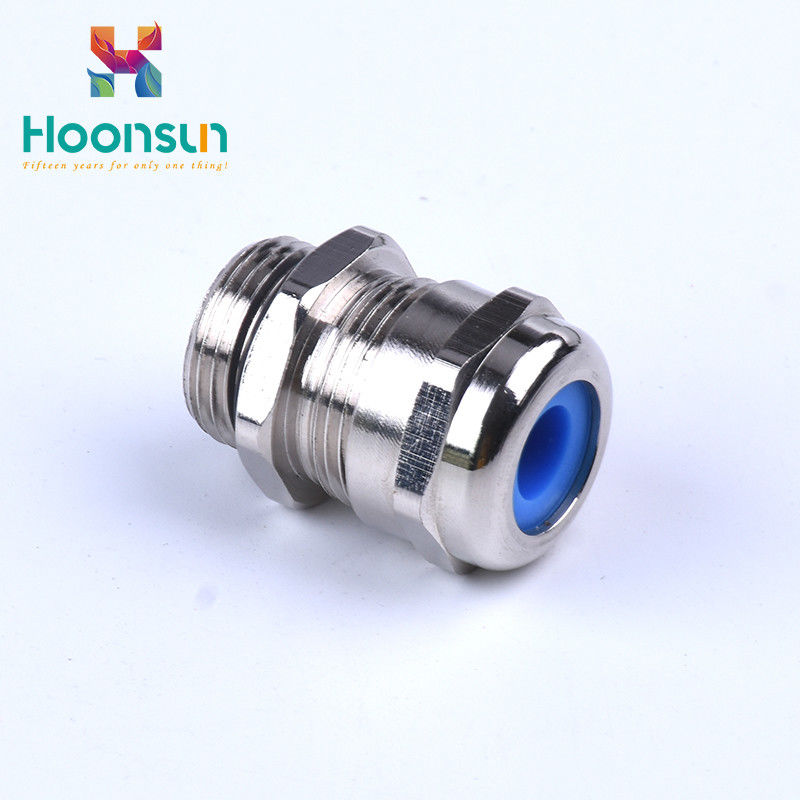

Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance

Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance

  • Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance
  • Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance
  • Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance
  • Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance
Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx waterproof cable gland
Certification: RoHS, ISO, CE, IP68,REACH
Model Number: M/PG Type
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Type: High Temperature Resistance Type Characteristic: Resist High Temp
Max Temperature: 250℃ Performance: Watertight
Surface Treatment: Electroplating Model NO.: M12-M72,PG7-PG13.5
High Light:

copper cable gland

,

double compression cable gland



Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance



Product Name:

high temperature resistant metal cable gland

Product structure:

sealing nut, seal, main body, O-ring and lock nut.

Material:

nickel plated brass and silicone rubber

Characteristics:

silicone core, strong heat resistance.

Applicable places:

high temperature places such as lamps, cars and so on

Working temperature:

- 60 ℃ to 250 ℃



Usage method:

  • Metal cable waterproof gland is the accessory of cable. The products are widely used in oil, chemical, machinery, nuclear power, shipbuilding, paper, pharmaceutical, food, aerospace and other fields.
  • The gland can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.
  • Access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.
  • Wire and cable fixed, can effectively clamp the cable and achieve the purpose of waterproofing.
  • The main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable gland to ensure its safe and reliable operation. If the sealing is bad, not only will the oil leakage cause the drying of the oil impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.

Insert Type Nickel Plated Copper Cable Gland With High Temperature Resistance 0

Item Range
Φ mm
Tread Length
GL mm
Thread O.D.
AG mm
Spanner size
mm
Code
M12×1.5 3-7 7 12 16/14 HX-NPM12S
M12×1.5 4-8 7 12 16/14 HX-NPM12S-8
M14×1.5 4-8 7 14 18/17 HX-NPM14S
M16×1.5 5-9 8 16 20/18 HX-NPM16S
M18×1.5 8-12 8 18 22/20 HX-NPM18S
M20×1.5 8-12 8 20 24/22 HX-NPM20S
PG7 3-7 7 12.5 16/15 HX-NPPG7S
PG9 4-8 7 15.2 18/18 HX-NPPG9S
PG11 5-9 8 18.5 22/21 HX-NPPG11S
PG13.5 8-12 8 20.4 24/23 HX-NPPG13.5S



Item Range
Φ mm
Tread Length
GL mm
Joint Length
mm
Spanner size
mm
Code
M PG G NPT
M12×1.5 PG7 G1/4 NPT1/4 4-7 7 21 18 HX-NP
"Item"S
M16×1.5 PG9     4-11 7 25 20
M18×1.5 PG11 G3/8 NPT3/8 4-11 7 25 22
M20×1.5 PG13.5 G1/2 NPT1/2 5-14 8 29 24
M22×1.5 PG16     5-14 8 29 24
M25×1.5 PG21 G3/4 NPT3/4 11-20 9 30 30
M32×1.5 PG29 G1 NPT1 15-25 10 32 36
M40×1.5 PG36 G1-1/4 NPT1-1/4 22-32 11 35 44
M50×1.5 PG42 G1-1/2 NPT1-1/2 31-42 13 37 58
M63×1.5 PG48 G2 NPT2 41-51 14 40 68
M72×2       50-54 16 47 81



Product details:

1. our thread specifications are metric thread, German thread, American thread and British thread.

2. the product material includes nickel plated brass (stainless steel) shell, nylon inner core, nitrile rubber and silicone rubber seal.

3. within the specified limits, with the sealing ring to tighten the nut, the protection level can reach IP68.

4. inner core unique clamping claw and sealing ring are mutually buckled and designed to tighten the nut to improve the tensile performance.

5. our products can be waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and other general solvents.

6., it can adapt to bad environment such as offshore operations, mine machinery and chemical equipment.
