| Place of Origin: | Zhejiang,China |
| Brand Name: | Hnx Marine Cable Gland |
| Certification: | RoHS, ISO, CE, IP68 |
| Model Number: | JIS10-JIS75 |
| Minimum Order Quantity: | 20-100 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Material: | Chromium-plated Brass | Protection Degree: | IP68-10 BAR |
|---|---|---|---|
| Surface Treatment: | Electroplating | Connection Type: | External Thread |
| Item: | JIS20 | Range: | 12-13 Mm |
| High Light: | marine waterproof cable glands,compression cable gland |
||

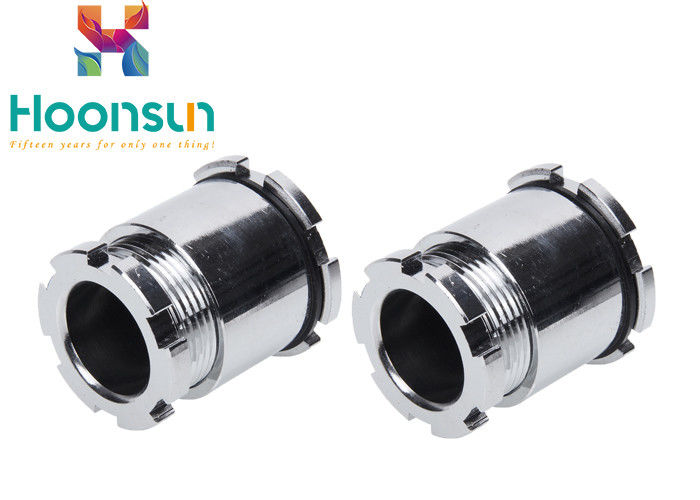

JIS Thread Chrome Plated Brass Cable Gland High Hardness Marine Cable Connectors
The JIS ship's packing letter uses the custom plum blossom shape, the shell is thickened and the inner core is designed uniquely. It has strong waterproof and super strong clamping performance and strong tensile strength.
Body is made of chromium plated brass , clamping ring is made of NSilicone rubber
Within the prescribed clamping range, the rubber gasket is used to screw the tight head, reaching IP54.
Static: 40 degrees below zero - 100 degrees, up to 120 degrees dynamic: 20 - 80 degrees below zero, short time to 100 degrees
European CE Certification, European REACH Certification and RoHS Certification
Instrumentation, ship, machinery, electrical, transportation, medicine, oil field, cable fixing
Customized business with special specifications is acceptable. Calls and letters are welcome for further enquiries.
| Item | Thread | Range (mm) |
GL Thread Length (mm) |
AG Thread O.D. (mm) |
Spanner size (mm) |
Code |
| JIS 10 | 3/8〃 | 6-7 | 11 | 16.6 | Φ22/28 | HX-JIS10A |
| 7-8 | HX-JIS10B | |||||
| JIS 15 | 1/2〃 | 8-9 | 11 | 20.9 | Φ28/31 | HX-JIS15A |
| 9-10 | HX-JIS15B | |||||
| 9-10 | HX-JIS15C | |||||
| JIS 20 | 3/4〃 | 11-12 | 11 | 26.4 | Φ34/37 | HX-JIS20A |
| 12-13 | HX-JIS20B | |||||
| 12-15 | HX-JIS20C | |||||
| JIS 25 | 1〃 | 15-16 | 11 | 33.2 | Φ41/45 | HX-JIS25A |
| 16-18 | HX-JIS25B | |||||
| 16-20 | HX-JIS25C | |||||
| JIS 30 | 1-1/4〃 | 20-22 | 12 | 41.9 | Φ49/56 | HX-JIS30A |
| 22-24 | HX-JIS30B | |||||
| 22-26 | HX-JIS30C | |||||
| JIS 35 | 1-1/2〃 | 26-28 | 12 | 47.8 | Φ56/62 | HX-JIS35A |
| 28-30 | HX-JIS35B | |||||
| 28-30 | HX-JIS35C | |||||
| JIS 40 | 30-32 | 47.8 | HX-JIS40A | |||
| 32-34 | HX-JIS40B | |||||
| 32-34 | HX-JIS40C | |||||
| JIS 45 | 2〃 | 34-36 | 12 | 59.6 | Φ68/76 | HX-JIS45A |
| 36-38 | HX-JIS45B | |||||
| 36-40 | HX-JIS45C | |||||
| JIS 50 | 40-42 | 59.6 | HX-JIS50A | |||
| 42-44 | HX-JIS50B | |||||
| 42-44 | HX-JIS50C | |||||
| JIS 55 | 2-1/2〃 | 44-46 | 12 | 75.1 | Φ84/94 | HX-JIS55A |
| 46-48 | HX-JIS55B | |||||
| 46-50 | HX-JIS55C | |||||
| JIS 60 | 50-52 | 75.1 | HX-JIS60A | |||
| 52-54 | HX-JIS60B | |||||
| 52-56 | HX-JIS60C | |||||
| JIS 65 | 3〃 | 56-58 | 14 | 88 | Φ98/112 | HX-JIS65A |
| 58-60 | HX-JIS65B | |||||
| JIS 70 | 60-62 | 88 | HX-JIS70A | |||
| 62-64 | HX-JIS70B | |||||
| JIS 75 | 64-66 | 88 | HX-JIS75A | |||
| 66-70 | HX-JIS75B |
Product performance: waterproof, dustproof and corrosion resistance. The diameter of the clamping hose is large and the tensile strength is strong. Under the condition of reasonable use of products, the waterproof level can reach IP68. This product can be waterproof, dustproof, corrosion resistant, high hardness, and can work in damp, salt / acid / alkaline environment.
FAQ
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the goods are in stock. Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Q: How about the after-sale service?
A: Any feedback or comments are welcomed. We will try to make the best assistant to let you maximum satisfaction.
