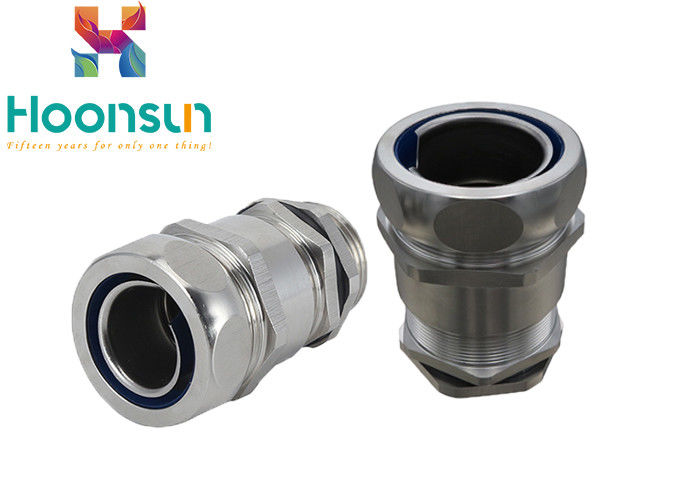

Galvanized Steel Split Type Metal Hose Fittings IP66 Protection

Galvanized Steel Split Type Metal Hose Fittings IP66 Protection

  • Galvanized Steel Split Type Metal Hose Fittings IP66 Protection
Galvanized Steel Split Type Metal Hose Fittings IP66 Protection
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Metal Hose Fitting
Certification: RoHS, ISO, CE, IP68
Model Number: DPJ
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Protection Degree: IP65 Brand: Hnx
Product Structure: Split Type Metal Washer: Zinc Alloy
Sealing Ring: Modified Rubber Mouth: Galvanied Steel / SS304
High Light:

Split Type Metal Hose Fittings

,

Galvanized Steel Metal Hose Fittings

,

IP66 Protection Metal Hose Fittings

DPJ SS304 / SS316L Pipe Metal Hose Fittings IP65 Stainless Steel Hydraulic Hose Fittings



Material(Extemal metal) :

NICKEL -PLATED BRASS/SUS304/316L

Sealing:

modified rubber

Mouth:

pa6 Ferrule-galvanized steel

Protection Degree:

IP66

Temperature Range:

-40 C to 100 C, instantly resistant to heat up to 120 C.

Product characteristics:
1. beautiful appearance, tight structure and high strength

2. the design and assembly of the hose sheath and the fastening of the hose are time-saving and convenient, and the tensile force is strong.

3. waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, oil, grease and general solvents

4. accept non-standard customization. please provide drawings or samples for customization

Production introduction:

  1. Metal hose connector is a high-quality flexible pipe in modern industrial pipelines.
  2. It mainly consists of corrugated pipe, net sleeve and joint.Its inner pipe is a thin-walled stainless steel corrugated pipe with spiral or annular shape,and the net cover of the outer layer of the corrugated pipe is woven by stainless steel wire or steel strip according to certain parameters.
  3. The connectors or flanges at both ends of the hose are matched with the connectors or flanges of the customer's pipe.
  4. The bellows of the hose is made of extremely thin-walled seamless or multi-welded stainless steel pipe through high precision plastic processing.
  5. Due to the elastic characteristics of the bellows profile, the hose has good flexibility and fatigue resistance, which makes it easy to absorb various cyclic loads of movement and deformation, especially in the pipeline system, it has the ability to compensate for large displacement.

Uses:

to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy





Galvanized Steel Split Type Metal Hose Fittings IP66 Protection 0

For conduit size G thread GL
Thread Length
M thread GL
Thread Length
PG Spanner size Code
M thread Inch thread
Φ6 3/16" G1/4" 7 M12/M14 7 PG7 18/16 HX-DPJ-"Conduit size"-"Tread type"
Φ8 5/16" G3/8" 7 M14/M16 8 PG9 24/22
Φ10 1/4" G3/8" 7 M16 8 PG9 24/22
Φ12(13) 3/8" G3/8" 10 M18/M20 10 PG11/PG13.5 26
Φ15(16) 1/2" G1/2" 12 M20/M22/M24 10 PG13.5/PG16 30
Φ20(19) 3/4" G3/4" 12 M25/M27/M30 12 PG21 35
Φ25 1" G1" 14 M32/M33/M36 12 PG29 43
Φ32 1-1/4" G1-1/4" 14 M36/M40/M42/M48 14 PG29 52
Φ38(40) 1-1/2" G1-1/2" 16 M48/M50 14 PG36/PG42 60
Φ51(50) 2" G2" 16 M60/M63/M64/M72 15 PG48 75
Φ64(70) 2-1/2" G2-1/2" 24 M76 20   89/87
Φ75(80) 3" G3" 25 M88 22   102/97
Φ100 4" G4" 25 M114 28   133/128
Φ125 5" G5" 25 M140 29   158
Φ150 6" G6" 25 M164 29   183



Galvanized Steel Split Type Metal Hose Fittings IP66 Protection 1



FAQ

Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed. We will try to make the best assistant to let you maximum satisfaction.

-40 C to 100 C, instantly resistant to heat up to 120 C.
