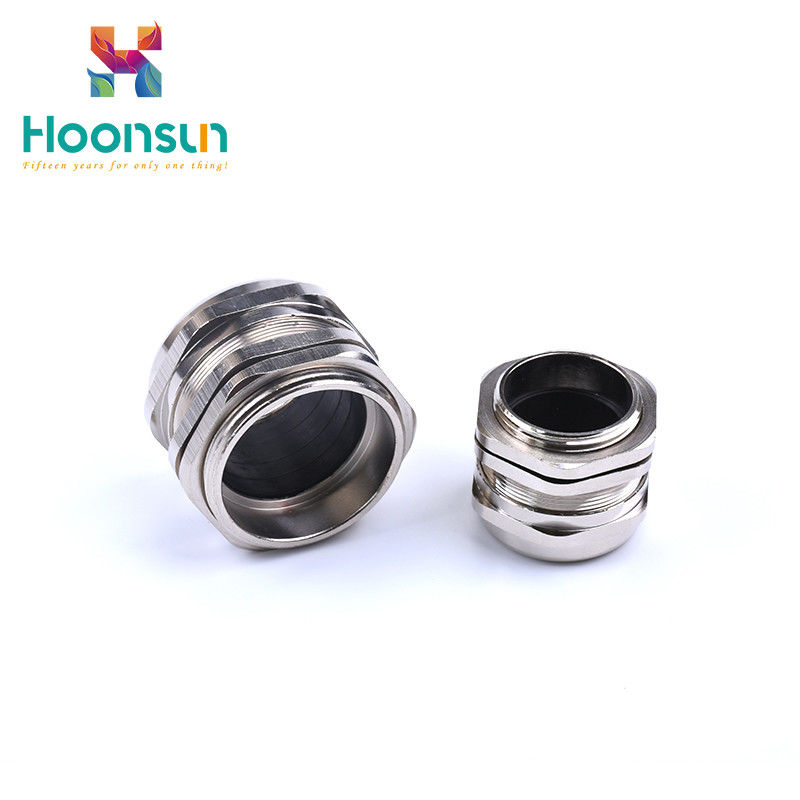

Industrial Waterproof Acid Resistance Cable Gland With Hermetic Seal

Industrial Waterproof Acid Resistance Cable Gland With Hermetic Seal

  • Industrial Waterproof Acid Resistance Cable Gland With Hermetic Seal
  • Industrial Waterproof Acid Resistance Cable Gland With Hermetic Seal
Industrial Waterproof Acid Resistance Cable Gland With Hermetic Seal
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx waterproof cable gland
Certification: RoHS, ISO, CE, IP68
Model Number: M Type
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Nickel-plated Brass Performance: Acid Resistance
Surface Treatment: Electroplate Model NO.: M10 To M63
Temperature: -40℃ To 100℃(Static State),-20℃ To 80℃(Dynamic State) Color: Silvery
High Light:

electrical cable gland


underwater cable gland


Industrial Waterproof Acid Resistance Cable Gland With Hermetic Seal


Product introduction:

The products are made up of sealing nut, claw, seal, body, O-ring and nut. T The material is mainly made of brass, nickel plated, inner core and other accessories made of PA66, UL94-V2, NBR and Silicone rubber. His characteristic is the thickening of the inner core, which makes the range of crossing a line smaller than that of other equivalent models. Product certification has European CE certification, European ROHS certification, European REACH certification, can be waterproof, dustproof, explosion-proof, corrosion resistance, and do not release toxic substances, no pollution of the environment. We have strict quality control: material control, mechanical quality control, material control, assembly quality inspection, leak inspection and final inspection to ensure the quality of the product. It is suitable for industries such as industry, circuit, electric box, LED lamp, robot industry, wind energy industry, manufacturing industry, maintenance industry, charging pile industry, electric motor industry, too energy industry and so on.

The role of the cable:

The protection of sensitive electronic / electrical products, used in extreme environment, can prolong the life of the equipment, greatly reduce the circuit failure caused by various corrosion, and can make the sealed box have better heat dissipation, unzip and so on.


Item Range
Φ mm
Tread Length
GL mm
Thread O.D.
AG mm
Joint Length
H mm
Spanner size
M10×1 2-5 6.5 10.0 17.0 14 HX-NPM10-5
M12×1.5 2-5 6.5 12.0 17.0 14 HX-NPM12-5
M14×1.5 3-6 8.0 14.0 18.0 17 HX-NPM14-6
M16×1.5 3-6 8.0 16.0 19.0 18 HX-NPM16-6
M18×1.5 3-7 8.0 18.0 20.0 20 HX-NPM18-7
M20×1.5 5-10 8.0 20.0 21.0 22 HX-NPM20-10
M22×1.5 8-12 8.0 22.0 22.0 24 HX-NPM22-12
M24×1.5 8-12 9.0 24.0 22.0 24/27 HX-NPM24-12
M25×1.5 8-12 9.0 25.0 22.0 24/27 HX-NPM25-12
M27×1.5 12-16 9.0 27.0 27.0 30 HX-NPM27-16
M30×2 12-16 9.0 30.0 27.0 30/32 HX-NPM30-16
M32×1.5 13-18 10.0 32.0 29.0 35 HX-NPM32-18
M33×2 14-20 10.0 33.0 29.0 35/36 HX-NPM33-20
M36×1.5 13-18 10.0 36.0 31.0 40 HX-NPM36-18
M36×1.5 15-22 10.0 36.0 31.0 40 HX-NPM36-22
M40×1.5 18-25 11.0 40.0 31.0 40/45 HX-NPM40-25
M47×1.5 23-30 11.0 47.0 37.0 50 HX-NPM47-30
M48×2 23-30 11.0 48.0 37.0 50/52 HX-NPM48-30
M50×1.5 30-35 13.0 50.0 37.0 57/55 HX-NPM50-35
M60×1.5 35-40 14.0 60.0 38.0 64 HX-NPM60-40
M63×1.5 35-40 14.0 63.0 38.0 64/68 HX-NPM63-40


Usage method

  • Metal cable waterproof gland is the accessory of cable. The products are widely used in oil, chemical, machinery, nuclear power, shipbuilding, paper, pharmaceutical, food, aerospace and other fields.
  • The gland can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.
  • Access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.
  • Wire and cable fixed, can effectively clamp the cable and achieve the purpose of waterproofing.
  • The main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable gland to ensure its safe and reliable operation. If the sealing is bad, not only will the oil leakage cause the drying of the oil impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.


Product Introduction

Our cable gland has a wide range of uses, which can be used to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy. The cable connector has corrosion resistance and can be applied to marine operations, chemical equipment and so on.
