| Place of Origin: | Zhejiang,China |
| Brand Name: | Hnx waterproof cable gland |
| Certification: | RoHS, ISO, CE, IP68,REACH |
| Model Number: | Metric Type |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Type: | Multiple Entry Type | Characteristic: | Convenient |
|---|---|---|---|
| Max Temperature: | 120℃ | Performance: | Watertight |
| Surface Treatment: | Electroplating | Model NO.: | M12-M63 |
| High Light: | metal cable gland brass,double compression cable gland |
||

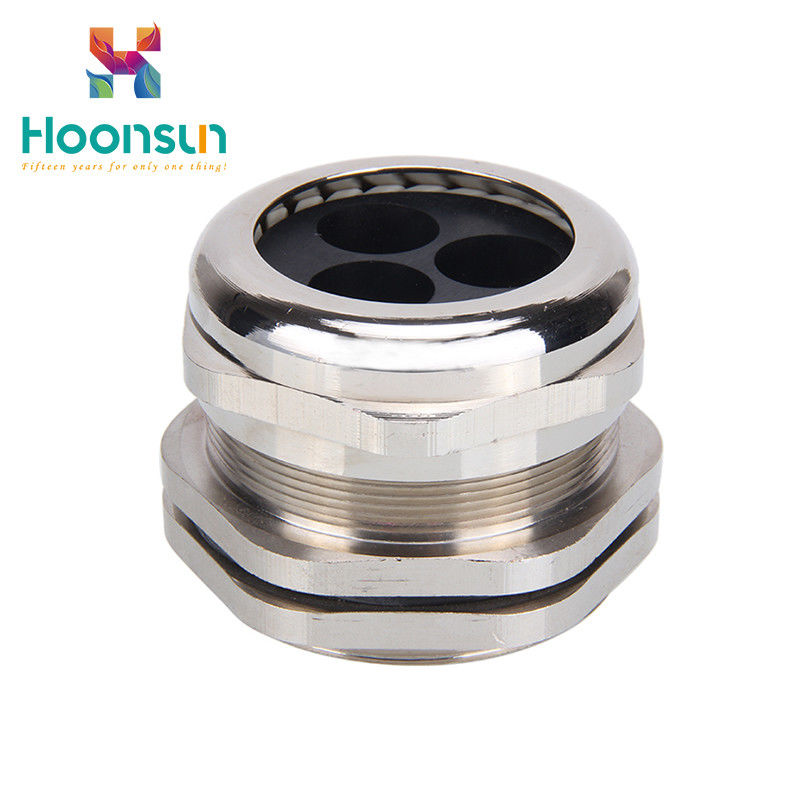

Multiple Entry Resist High Temperature Cable Gland / Waterproof Cable Gland With NBR
Product Name: metal multiple type cable gland
Material: nickel plated brass
Features: seal is porous design, can connect multiple cables, easy to use.
Product structure: tight nut, seal, clamping jaw, main body, O ring and nut.
Working temperature: a temperature that can withstand 120 degrees Celsius in a static environment for a short period of time.
Note: can be customized according to different requirements
Usage method:
The straight through cable waterproof gland is a matching accessory for cables, mainly used in distribution boxes and power distribution cabinets.The gland can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.Access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.Wire and cable fixed, can effectively clamp the cable and achieve the purpose of waterproof.According to the core material, it can be divided into copper core power cable gland and aluminum core power cable gland.The main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable gland to ensure its safe and reliable operation.If the sealing is bad, not only will the oil leakage cause the drying of the oil impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.
| Item | F | M2 | M3 | M4 | M5 | M6 | M7 | M8 | Code |
| M12×1.5 | / | 3-1.2 | 2.6-1.2 | 2.3-1 | / | / | / | / | HX-NDM12/* |
| M16×1.5 | / | 4-1.6 | 2.6-1.2 | 2.3-1 | 2.5-1 | 2-1 | / | / | HX-NDM16/* |
| M18×1.5 | 6*10 | 3.5-2 | 4-1.6 | 3-1.2 | 2.6-1.5 | 2.2-1 | / | / | HX-NDM18/* |
| M20×1.5 | 5*11.5 | 5.3-1.5 | 5-2 | 4.2-1.7 | 3-1.2 | 3-1.2 | 3-1.2 | 3-1.2 | HX-NDM20/* |
| M22×1.5 | 6*14 | 6-2.5 | 3.5-1.5 | 4.5-2 | 3-1.2 | 3-1.2 | 3-1.2 | / | HX-NDM22/* |
| M25×1.5 | 6*14 | 8.7-4 | 8-4 | 5-2 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | HX-NDM25/* |
| M27×1.5 | 7*18 | 8.7-4.5 | 5-2 | 7-3.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | HX-NDM27/* |
| M32×1.5 | 8*22 | 10-5 | 10-5 | 9-4.5 | 8.0-4.0 | 7-3.5 | 6-3 | / | HX-NDM32/* |
| M37×1.5 | / | 9-6 | / | 9-6 | / | 6.5-3.5 | / | / | HX-NDM37/* |
| M40×1.5 | / | 15-12 | / | / | 9-6 | 8-5 | 9-6 | / | HX-NDM40/* |
| M50×1.5 | / | / | / | / | 5-3 | / | / | / | HX-NDM50/* |
| M63×1.5 | / | 17-14 | 18-15 | / | / | / | / | / | HX-NDM63/* |
Product Introduction
length type cable gland, strengthened type cable gland, direct type cable gland,
multiple-entry type cable gland, high temperature resistance type cable gland,
double locking type cable gland, spiral type cable gland, 90º flexible pipe connector,
EMC cable gland, and explosion proof cable gland, etc.
Conventional type cable gland, split type cable gland, anti bending cable gland,
corrugated tubing cable gland, nylon union for flexible pipe, hose cable gland, etc.
DCG single compression type cable gland, JIS standard type cable gland,
TJ clamping type cable gland and TH welded type cable gland, etc.
PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc.
Breathable vent plug and breathable cable gland, etc.
Brass reducer, brass enlarger, standard locknut, EMC locknut,
brass screw plug and waterproof junction box, etc.
