| Place of Origin: | Zhejiang,China |
| Brand Name: | Hnx waterproof cable gland |
| Certification: | RoHS, ISO, CE, IP68,REACH |
| Model Number: | BDM Series |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Material: | Brass | Sealing Material: | Neoprene,silicone Rubber |
|---|---|---|---|
| Max Temperature: | 100 ℃ | Performance: | Flameproof,resist High Temp |
| Protection Degree: | Exd ⅡC Gb | Scope Of Application: | Hazardous Area |
| High Light: | high temperature cable gland,flameproof cable gland |
||

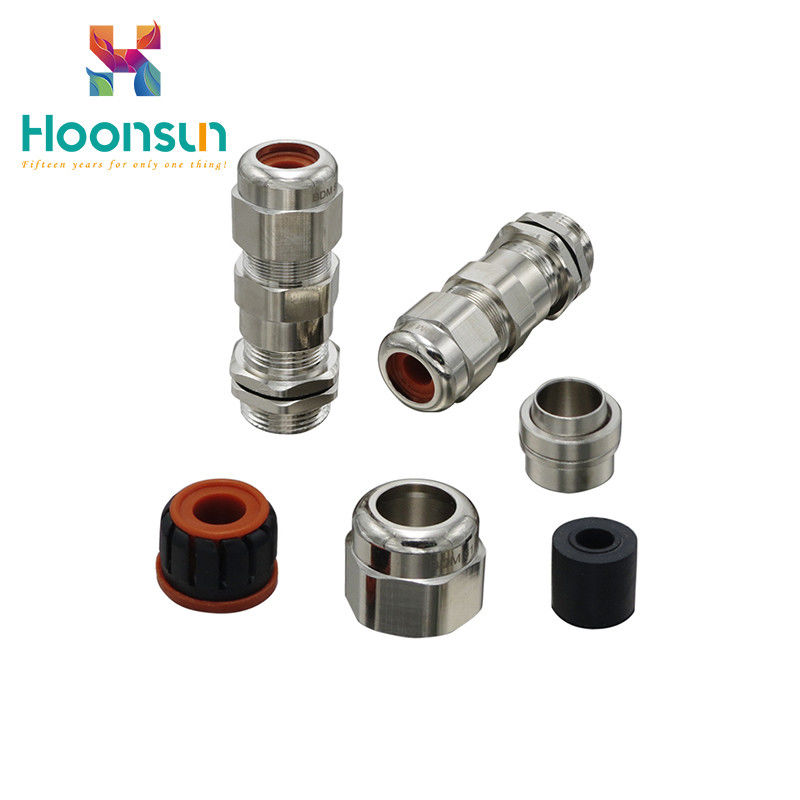

Dll DIP E BDM Explosion proof Cable Gland Neoprene Sealing Material For Hazardous Area
BDM explosion-proof cable clamping seal joint is a kind of explosion-proof electrical line laid accessories, mainly used for the connection between explosion-proof cables and explosion-proof electrical appliances, suitable for holding and fixing various types of armoured cable (BDM9 and BDM10 type) or non armoured cable BDM11.
Scope of application:
It is suitable for the dangerous places in area 1 and 2. IIA, IIB and IIC group T1-T6 are flammable and explosive gas environment, such as petroleum refining and petroleum chemical industry, coal mine, oil field, natural gas chemical industry, gunpowder industry, chemical fiber industry, paint industry, fertilizer industry and various pharmaceutical industries. Oil wheels and LPG vehicles, aircraft, warehouses for flammable and explosive products, electrolysis workshops, assembly workshops of communication machines, and places where joints are not rusty, wear-resistant and anti magnetic.
| Item | Insert thread size (AG) |
Cable acceptance detail | Maximum length (H) | GL | Hex size | ||||||||
| Inner sheath/core line | Cable outside dameter(B) | ||||||||||||
| Metric | NPT.G | Coreline maximum |
Inner innersheath |
Maximum core line |
Min | Max | Dirction 1 | Direction 2 | Across flats | Across corner |
|||
| HX-EX-2-01o | M20×1.5 | 1/2" | 9 | 10 | 6 | 5.5 | 12 | 0.9/1.25 | 0/0.7 | 65.5 | 15 | 24 | 27.7 |
| HX-EX-2-01S | M20×1.5 | 1/2" | 9 | 10 | 6 | 9.5 | 16 | 0.9/1.25 | 0/0.7 | 65.5 | 15 | 24 | 27.7 |
| HX-EX-2-02 | M20×1.5 | 1/2"-3/4" | 11.2 | 12.5 | 10 | 12.5 | 20.5 | 0.9/1.25 | 0/0.7 | 67.5 | 15 | 30 | 34.6 |
| HX-EX-2-03 | M25×1.5 | 3/4"-1" | 16.3 | 18.4 | 21 | 16.9 | 26 | 1.25/1.6 | 0/0.7 | 71.4 | 15 | 36 | 41.6 |
| HX-EX-2-04 | M32×1.5 | 1"-1 1/4" | 22 | 24.7 | 42 | 22 | 33 | 1.6/2.0 | 0/0.7 | 76 | 15 | 46 | 53.1 |
| HX-EX-2-05 | M40×1.5 | 1 1/4"-1 1/2" | 26.5 | 29.7 | 60 | 28 | 41 | 1.8/2.5 | 0/0.7 | 78.2 | 15 | 55 | 63.5 |
| HX-EX-2-06 | M50×1.5 | 1-1/2"-2" | 37.2 | 41.7 | 80 | 36 | 52.6 | 1.8/2.5 | 0/1 | 91 | 15 | 65 | 75.1 |
| HX-EX-2-07 | M63×1.5 | 2"-2 1/2" | 47.6 | 53.5 | 100 | 46 | 65.3 | 1.8/2.5 | 0/1 | 98 | 15 | 80 | 92.4 |
| HX-EX-2-08 | M75×2 | 2 1/2"-3" | 60 | 65.3/66.2 | 120 | 57 | 78 | 1.8/2.5 | 0/1 | 102.2 | 15 | 95 | 109.6 |
product introduction
Our products are divided into nylon cable glands and metal cable glands according to the gland material. The metal cable glands are also divided into brass cable glands, stainless steel cable glands and zinc alloy cable glands, etc.
The cable gland is divided into waterproof cable gland, explosion-proof cable gland, anti bending cable gland, double locking cable gland, plastic hose cable gland, metal hose cable gland and marine stuffing box according to function.
Cable gland use
Indoor: LED lamp, robot industry, manufacturing industry, maintenance industry, etc.Outdoor: circuit, electric box, wind energy industry, solar energy industry, charging pile industry, etc.
Our service
We welcome customers to provide us with suggestions related to products.Any question can be told to us by email or telephone, and we will handle it for you in a timely manner.Quick and accurate deliveryWe ensure the quality of our products is excellent.Products can be customized according to specific requirements
Company advantages
1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.
2. automatic production of numerical control equipment, accurate and safe
3.2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
