| Place of Origin: | Zhejiang,China |
| Brand Name: | Metal Hose Fitting |
| Certification: | RoHS, ISO, CE, IP68 |
| Model Number: | DPJ |
| Minimum Order Quantity: | 20-100 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Protection Degree: | IP66 | Seal: | Insulation Material |
|---|---|---|---|
| Type: | Adapter | Metal Washer: | Zinc Alloy |
| Sealing Ring: | Modified Rubber | Mouth: | Galvanied Steel / SS304 |
| High Light: | brass pipe fittings,metal hose adapter |
||

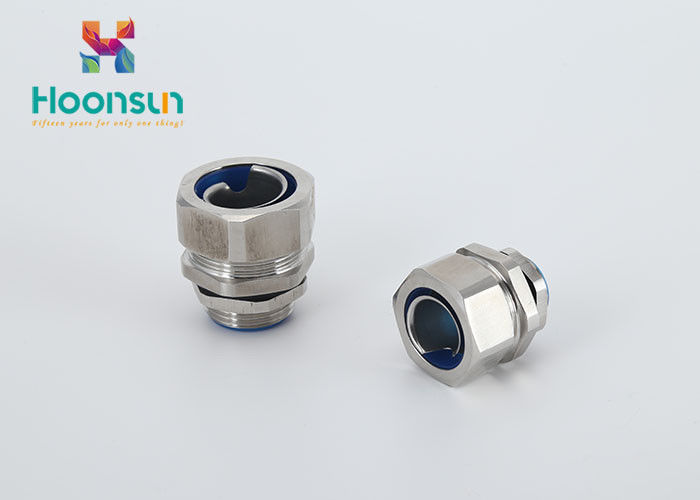

Waterproof Metal Hose Fittings Flexible Conduit PG / G Thread With Insulation Material
Product material: made of high quality and thickened zinc alloy
Protection grade: IP67
Product color: metal color (silver white)
Working temperature: -40 ℃ ~ + 100 ℃, short time up to + 20 C.
Features: the quality is reliable and the performance is stable.
Application: This is a flexible metal conduit using an online direct connector.
Product characteristics:
1. connecting the thread free steel pipe and fixed with the card spring.
2. in addition to the following standard specifications, the size and thread standards can be changed according to the requirements.
Properties of zinc alloy joints: dustproof, waterproof, corrosion resistant, shockproof.
One end of the self solidified zinc alloy joint with metal ring is connected with a metal hose, and the other end is connected with a non screwed steel pipe.
Self fixing zinc alloy joint fitting metal hose: galvanized metal hose, stainless steel metal hose, plastic metal hose, flat plastic metal hose, explosion-proof metal hose.
Product characteristics:
1. beautiful appearance, tight structure and high strength
2. the design and assembly of the hose sheath and the fastening of the hose are time-saving and convenient, and the tensile force is strong.
3, waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, oil, grease and general solvents
4. accept non-standard customization. please provide drawings or samples for customization
Production introduction:
Metal hose connector is a high-quality flexible pipe in modern industrial pipelines.It mainly consists of corrugated pipe, net sleeve and joint.Its inner pipe is a thin-walled stainless steel corrugated pipe with spiral or annular shape,and the net cover of the outer layer of the corrugated pipe is woven by stainless steel wireor steel strip according to certain parameters. The connectors or flanges at both ends of the hose are matched with the connectors or flanges of the customer's pipe. The bellows of the hose is made of extremely thin-walled seamless or multi-welded stainless steel pipe through high precision plastic processing. Due to the elastic characteristics of the bellows profile, the hose has good flexibility and fatigue resistance, which makes it easy to absorb various cyclic loads of movement and deformation, especially in the pipeline system, it has the ability to compensate for large displacement.
| For conduit size | G thread | GL Thread Length |
M thread | GL Thread Length |
PG | Spanner size | Code | |
| M thread | Inch thread | |||||||
| Φ6 | 3/16" | G1/4" | 7 | M12/M14 | 7 | PG7 | 18/16 | HX-DPJ-"Conduit size"-"Tread type" |
| Φ8 | 5/16" | G3/8" | 7 | M14/M16 | 8 | PG9 | 24/22 | |
| Φ10 | 1/4" | G3/8" | 7 | M16 | 8 | PG9 | 24/22 | |
| Φ12(13) | 3/8" | G3/8" | 10 | M18/M20 | 10 | PG11/PG13.5 | 26 | |
| Φ15(16) | 1/2" | G1/2" | 12 | M20/M22/M24 | 10 | PG13.5/PG16 | 30 | |
| Φ20(19) | 3/4" | G3/4" | 12 | M25/M27/M30 | 12 | PG21 | 35 | |
| Φ25 | 1" | G1" | 14 | M32/M33/M36 | 12 | PG29 | 43 | |
| Φ32 | 1-1/4" | G1-1/4" | 14 | M36/M40/M42/M48 | 14 | PG29 | 52 | |
| Φ38(40) | 1-1/2" | G1-1/2" | 16 | M48/M50 | 14 | PG36/PG42 | 60 | |
| Φ51(50) | 2" | G2" | 16 | M60/M63/M64/M72 | 15 | PG48 | 75 | |
| Φ64(70) | 2-1/2" | G2-1/2" | 24 | M76 | 20 | 89/87 | ||
| Φ75(80) | 3" | G3" | 25 | M88 | 22 | 102/97 | ||
| Φ100 | 4" | G4" | 25 | M114 | 28 | 133/128 | ||
| Φ125 | 5" | G5" | 25 | M140 | 29 | 158 | ||
| Φ150 | 6" | G6" | 25 | M164 | 29 | 183 | ||
FAQ
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the goods are in stock.Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Q: How about the after-sale service?A: Any feedback or comments are welcomed. We will try to make the best assistant to let you maximum satisfaction.
