Place of Origin: | Zhejiang,China |
Brand Name: | Hnx Stainless Steel |
Certification: | RoHS, ISO, CE, IP68 |
Model Number: | M5-M16 |
Minimum Order Quantity: | 20-100 Pieces |
---|---|
Price: | Negotiation |
Packaging Details: | 38*25*17mm |
Delivery Time: | 3-30 Day |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 30000 Pieces/Day |
Sealing: | Modified Rubber | Protection Degree: | IP68 |
---|---|---|---|
Heat Dissipation Permeability: | 2400ml/s/㎡ | Seal: | Modified Rubber |
Working Temperature: | -40℃ ~ 120℃ | Thread Length: | 8mm |
High Light: | breather vent valve,vacuum relief valve |

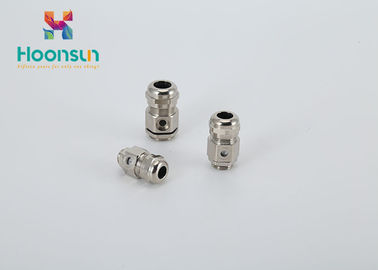

Product material: copper plating nickel
Core sleeve: nylon V2 (UL94)
Sealing parts: modified rubber
Flame retardant grade: V2 (UL94), meet RoHS requirements
Heat dissipation and air permeability: 2400ml/㎡ /@0.02bar
Product characteristics:
1. waterproof and dustproof grade IP65 to IP68., quickly return to air after contacting liquid.
2. high gas permeability can reduce the applied force of the sealing strip by balancing pressure.
3. water repellent and monk oil structure protective film embedded in plastic shell, 1> has the characteristics of sex and monality.
4. tiny porous structure screens can even prevent salt crystals from having moisture and moisture permeability.
5. threaded housing with an efficient and environmentally friendly seal ring. (with special needs to be customizable)
Main benefits
Protect sensitive electronic and electrical products; reduce the design and manufacturing costs of the shell; use in extreme environments to prolong the life of the equipment without failure and maintenance; greatly reduce the failure of the electronic and inductive products caused by various corrosion; greatly reduce the fog and condensation; general and easy to install (non standard products) It can make the sealed box have better heat dissipation and decompression effect.
Item | Range | GL | Thread O.D. | Joint Length | Spanner size | Code |
M12×1.5 | 3-6.5 | 6.5 | 12.0 | 27 | 16 | HX-NFM12 |
4-8 | 8 | 12.0 | 27 | 16/14 | HX-NFM12-8 | |
M16×1.5 | 3-6 | 8 | 16.0 | 27 | 18 | HX-NFM16-6 |
4-8 | 8 | 16.0 | 27 | 18 | HX-NFM16 | |
5-10 | 8 | 16.0 | 27 | 20/18 | HX-NFM16-10 | |
M18×1.5 | 5-10 | 8 | 18.0 | 29 | 20 | HX-NFM18 |
M20×1.5 | 5-10 | 8 | 20.0 | 32 | 22 | HX-NFM20-10 |
6-12 | 8 | 20.0 | 32 | 22 | HX-NFM20 | |
10-14 | 8 | 20.0 | 32 | 24/22 | HX-NFM20-12 | |
M25×1.5 | 8-12 | 9 | 25.0 | 35 | 24/27 | HX-NFM25-12 |
10-14 | 9 | 25.0 | 35 | 24/27 | HX-NFM25-14 | |
12-16 | 9 | 25.0 | 35 | 27 | HX-NFM25-16 | |
13-18 | 9 | 25.0 | 35 | 30/27 | HX-NFM25-18 | |
M32×1.5 | 13-18 | 10 | 32.0 | 54 | 35 | HX-NFM32-18 |
15-22 | 10 | 32.0 | 54 | 35 | HX-NFM32 | |
18-25 | 10 | 32.0 | 54 | 40/35 | HX-NFM32-25 | |
M40×1.5 | 18-25 | 11 | 40.0 | 46 | 40/45 | HX-NFM40-25 |
22-30 | 11 | 40.0 | 50 | 45 | HX-NFM40-30 | |
25-33 | 11 | 40.0 | 52 | 50/45 | HX-NFM40-33 | |
M50×1.5 | 32-38 | 13 | 50.0 | 55 | 57/55 | HX-NFM50 |
M63×1.5 | 37-44 | 14 | 63.0 | 55 | 64/68 | HX-NFM63 |
42-52 | 14 | 63.0 | 55 | 78/68 | HX-NFM63-52 | |
Customizable PG/G/NPT thread |
Metal hose connector is a high-quality flexible pipe in modern industrial pipelines.
It mainly consists of corrugated pipe, net sleeve and joint.
Its inner pipe is a thin-walled stainless steel corrugated pipe with spiral or annular shape,
and the net cover of the outer layer of the corrugated pipe is woven by stainless steel wire
or steel strip according to certain parameters. The connectors or flanges at both ends of the hose
are matched with the connectors or flanges of the customer's pipe.
The bellows of the hose is made of extremely thin-walled seamless
or multi-welded stainless steel pipe through high precision plastic processing.
Due to the elastic characteristics of the bellows profile,
the hose has good flexibility and fatigue resistance,
which makes it easy to absorb various cyclic loads of movement and deformation,
especially in the pipeline system, it has the ability to compensate for large displacement.
Application scope:
Outdoor lighting, automobile, communication equipment,sports equipment precision electronic equipment, security, solar pv and other industries.
FAQ
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the goods are in stock.
Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Q: How about the after-sale service?
A: Any feedback or comments are welcomed.
We will try to make the best assistant to let you maximum satisfaction.
