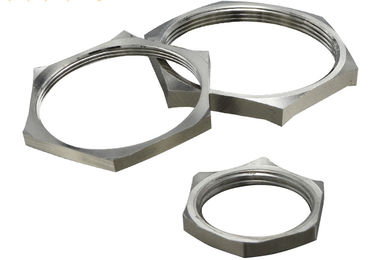

Hexagon Cable Gland Brass Accessories / Copper EMC Locknut With Band Angle

Hexagon Cable Gland Brass Accessories / Copper EMC Locknut With Band Angle

  • Hexagon Cable Gland Brass Accessories / Copper EMC Locknut With Band Angle
  • Hexagon Cable Gland Brass Accessories / Copper EMC Locknut With Band Angle
  • Hexagon Cable Gland Brass Accessories / Copper EMC Locknut With Band Angle
Hexagon Cable Gland Brass Accessories / Copper EMC Locknut With Band Angle
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx nylon cable gland
Certification: RoHS, CE, IP68
Model Number: M/PG/G/NPT Type
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Nickel Plated Brass Characteristic: Band Angle
Min Temperature: -40 To 100 Usage: Threaded Connection
Hermetic Seal: NBR,silicone Rubber Feature: Seal Part Hold Cable Firmly
High Light:

cable gland connector

,

cable gland adaptor

Hexagon Cable Gland Brass Accessories / Copper EMC Locknut With Band Angle



Material:

nickel plated brass


Application

threaded connection or machine plate opening nut fixing.


Performance

scraping the protective layer on the top of the body through 6 sharp corners on the nut, and contacting the conductive layer to generate static electricity.



Remark

we can customized as customes’requirements



Item Thickness Spanner Size Code
M12x1.5 3 14 HX-LNM12EMC
M14x1.5 3 17 HX-LNM14EMC
M16x1.5 3 18 HX-LNM16EMC
M18x1.5 3 20 HX-LNM18EMC
M20x1.5 3 22 HX-LNM20EMC
M22x1.5 3.2 24 HX-LNM22EMC
M24x1.5 3.5 27 HX-LNM24EMC
M25x1.5 3.5 27 HX-LNM25EMC
M27x1.5 4 30 HX-LNM27EMC
M30x1.5 4 32 HX-LNM30EMC
M32x1.5 4 35 HX-LNM32EMC
M33x1.5 4 36 HX-LNM33EMC
M36x1.5 4 40 HX-LNM36EMC
M37x1.5 4 40 HX-LNM37EMC
M40x1.5 4.5 45 HX-LNM40EMC
M42x1.5 5 45 HX-LNM42EMC
M47x1.5 5.5 50 HX-LNM47EMC
M48x1.5 5.5 52 HX-LNM48EMC
M50x1.5 5.5 55 HX-LNM50EMC
M54x1.5 5.5 57 HX-LNM54EMC
M60x1.5 6 64 HX-LNM60EMC
M63x1.5 6 68 HX-LNM63EMC
M64x2 6 68 HX-LNM64EMC
M72x2 8.5 78 HX-LNM72EMC
M75x2 8.5 78 HX-LNM75EMC
M80x2 9 88 HX-LNM80EMC
M88x2 9 94 HX-LNM88EMC
M100x2 9 110 HX-LNM100EMC



Item Thickness Spanner Size Code
PG7 3 15 HX-LNPG7EMC
PG9 3 18 HX-LNPG9EMC
PG11 3 21 HX-LNPG11EMC
PG13.5 3 23 HX-LNPG13.5EMC
PG16 3.2 25 HX-LNPG16EMC
PG19 3.5 27 HX-LNP19EMC
PG21 4 30 HX-LNPG21EMC
PG25 4 35 HX-LNPG25EMC
PG29 4 40 HX-LNPG29EMC
PG36 5.5 50 HX-LNPG36EMC
PG42 6 57 HX-LNPG42EMC
PG48 6.5 64 HX-LNPG48EMC
PG63 8.5 78 HX-LNPG63EMC
G1/2 3 23 HX-LNG1/2EMC
G3/4 4 30 HX-LNG3/4EMC
G1 4 40 HX-LNG1EMC
G1-1/4 5.5 50 HX-LNG1-1/4EMC
G1-1/2 5.5 57 HX-LNG1-1/2EMC
G2 6 64 HX-LNG2EMC
G2-1/2 8.5 78 HX-LNG2-1/2EMC
G3 9 94 HX-LNG3EMC
NPT1/2 3 23 HX-LNNPT1/2EMC
NPT3/4 4 30 HX-LNNPT3/4EMC
NPT1 4 40 HX-LNNPT1EMC
NPT1-1/4 5.5 50 HX-LNNPT1-1/4EMC
NPT1-1/2 5.5 57 HX-LNNPT1-1/2EMC
NPT2 6 64 HX-LNNPT2EMC
NPT2-1/2 8.5 78 HX-LNNPT2-1/2EMC
NPT3 9 94 HX-LNNPT3EMC



Usage method:
As the normal nut is used, the nut is wriggled directly. In the continuous tightening process, the protective layer of the nut squirt can achieve the effect of electrostatic conduction.



Company advantages:

1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.

2. automatic production of numerical control equipment, accurate and safe

3.2011 years become Liaoning "aircraft carrier" special waterproof connector supplier



Product Introduction

Waterproof metal cable gland type:

Large type cable gland, large range type cable gland, small range type cable gland, length type cable gland, strengthened type cable gland, direct type cable gland, multiple-entry type cable gland, high temperature resistance type cable gland, double locking type cable gland, spiral type cable gland, 90º flexible pipe connector, EMC cable gland, and explosion proof cable gland, etc.

Nylon cable gland type:

Conventional type cable gland, split type cable gland, anti bending cable gland, corrugated tubing cable gland, nylon union for flexible pipe, hose cable gland, etc.

Marine cable gland:

DCG single compression type cable gland, JIS standard type cable gland, TJ clamping type cable gland and TH welded type cable gland, etc.

Flexible Pipe type:

PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc.

Vent valve series:

Breathable vent plug and breathable cable gland, etc.

Accessories:

Brass reducer, brass enlarger, standard locknut, EMC locknut, brass screw plug and waterproof junction box, etc.
