Home ProductsStainless Steel Cable Gland

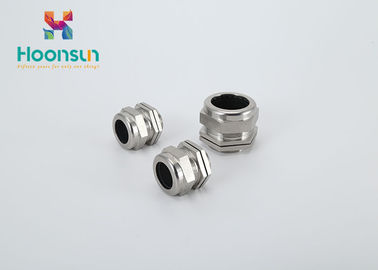

PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland

PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland

  • PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland
  • PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland
  • PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland
  • PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland
PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx waterproof cable gland
Certification: RoHS, ISO, CE, IP68,REACH
Model Number: PG Type
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: SS304 / SS316L Advantages: Factory Direct Sale
Max Temperature: 120 ℃ Sample: Free Samples For Your Reference
Surface Treatment: Electroplating Model NO.: PG7-PG63
High Light:

ss cable gland

,

steel cable gland

PG7 UL94 - V2 SS Cable Gland / Oil Resistance Stainless Cable Gland



Stainless steel waterproof cable glands are widely used in mechanical equipment electrical, marine electrical, corrosion protection equipment wire and cable fixation and protection. The main function of stainless steel waterproof cable gland is the fastening and sealing of cables. Fastening means that the cable is locked by the cable connector, so that the cable does not produce axial displacement and radial rotation, so as to ensure the normal connection of cables. Sealing refers to the commonly used IP protection, that is, dustproof and waterproof. Our product waterproof grade reaches IP68.



Product details:

1. the thread size of cable gland is regular German thread type PG.

2. the main material is high quality stainless steel SS304/316L, high hardness, good corrosion resistance, and no picky working environment.

3. the clamping piece is nylon plastic PA66 and UL94-V2. It has good tensile property and can effectively protect cables.

4. the O-ring and seals are nitrile rubber and silicone rubber. The waterproofing performance reaches IP68 and protects the cable from rust.

5. through the European Union CE certification and RoHS certification, it is non-toxic, pollution-free and environmentally friendly.



Thread Range GL Mountinghole H Spanner size Code
PG7 3-6.5 7 12.5 19.0 14/15 HX-SSPG7
PG9 4-8 8 15.2 20.0 17/18 HX-SSPG9
PG11 5-10 8 18.6 21.0 20/21 HX-SSPG11
PG13.5 6-12 8 20.4 22.0 22/23 HX-SSPG13.5
PG16 10-14 8 22.5 23.0 24/25 HX-SSPG16
PG21 13-18 9 28.3 27.0 30 HX-SSPG21
PG29 18-25 10 37.0 31.0 40 HX-SSPG29
PG36 25-33 11 47.0 37.0 50 HX-SSPG36
PG42 32-38 13 54.0 38.0 60 HX-SSPG42
PG48 37-44 14 59.3 38.0 65 HX-SSPG48
PG63 42-52 16 72.0 42.0 76/80 HX-SSPG63



Installation attention

conductor connection conductor connection requires low resistance and sufficient mechanical strength, and no sharp corners can be found at the junction. The middle and low voltage cable conductor connection is usually pressed.

(1) choose suitable conductor and connecting tube with electrical conductivity and mechanical strength;

(2) the gap between the inner diameter of the pressure pipe and the outer diameter of the connecting core is 0.8~1.4mm.

(3) the resistance value of the joint after crimping shall not be 1.2 times higher than that of the equal section conductor, and the tensile strength of the copper conductor joint shall not be less than 60N/mm2;

(4) before crimping, the outer surface of the conductor is coated with conductive adhesive on the inner surface of the connecting pipe, and the oxide film is destroyed by a wire brush.

(5) sharp corners and burrs on connecting pipes and conductor conductors, smoothing with files or sandpaper.



FAQ

Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.

Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,

balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed.

We will try to make the best assistant to let you maximum satisfaction.
