| Place of Origin: | Zhejiang,China |
| Brand Name: | Hnx Flexible Hose Pipe |
| Certification: | CE,RoHS |
| Model Number: | PA/PP/PE |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 50m |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Material: | PP(Polypropylene) | Color: | Black,Red,White |
|---|---|---|---|
| Application: | Electric Cable Wire Protection | Feature: | High Flexibility |
| Temperature: | -30℃ To 130℃ | Usage: | Cable Protector |
| High Light: | flexible plastic tubing,flexible ducting hose |
||

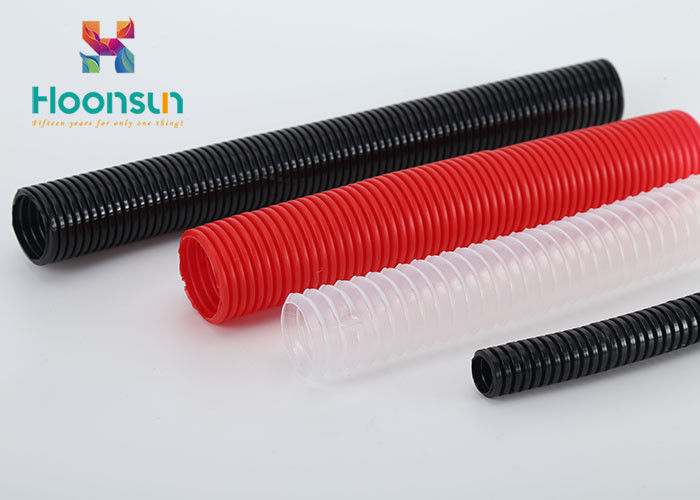

High Flexibility Flexible Hose Pipe / Cable Protection Flexible Electrical Conduit
Material: PP (polyethylene)
Temperature: -30 ℃ -110 ℃, short time to 130 ℃.
Color: black, other colors can be customized.
Product certification: European CE, European environmental ROHS
Characteristics: soft and flexible, anti twist; good mechanical strength, can bear heavy load; acid resistance, cuttings liquid, lubricating oil, coolant and so on; surface gloss, friction resistance; black resistance to ultraviolet light, high mechanical strength
Application: can protect wire and cable from external wear and insulation load.
Ability: it can withstand the pressure of foot and higher strength without deformation, but it can recover quickly and there is no damage to itself.
Applications: wind power generation, subway track, electric locomotive compartment use; mechanical manufacturing, electrical insulation protection, public transportation equipment; lighting equipment; automobile manufacturing, aviation equipment and so on;
Usage: wire and cable will be inserted into the pipe, and then use the series of hose connectors.
This product has a high hardness.
| Code | Conduit size | d Inner size |
D Outer size |
Bengding radius | Dynamic Radius | |
| HX-PA-10.0 | AD10.0 | 1/4" | 6.50 | 10.00 | 16 | 35 |
| HX-PA-11.6 | AD11.6 | 8.00 | 11.60 | 16 | 35 | |
| HX-PA-13.0 | AD13.0 | 5/16" | 10.00 | 13.00 | 20 | 45 |
| HX-PA-15.8 | AD15.8 | 3/8" | 12.00 | 15.80 | 30 | 60 |
| HX-PA-18.5 | AD18.5 | 14.30 | 18.50 | 40 | 70 | |
| HX-PA-21.2 | AD21.2 | 1/2" | 17.00 | 21.20 | 45 | 75 |
| HX-PA-25.0 | AD25.0 | 20.00 | 25.00 | 45 | 75 | |
| HX-PA-28.5 | AD28.5 | 3/4" | 23.00 | 28.50 | 50 | 110 |
| HX-PA-34.5 | AD34.5 | 1" | 29.00 | 34.50 | 60 | 115 |
| HX-PA-42.5 | AD42.5 | 1-1/4" | 36.00 | 42.50 | 70 | 120 |
| HX-PA-54.5 | AD54.5 | 2" | 48.00 | 54.50 | 90 | 150 |
Usage method:
Plastic hose is used to make bearings, cams, cams, bevel gear, various roller, pulley, pump impeller, fan blade, worm wheel, propeller, screw, nut, cushion, high pressure seal, oil proof gasket, oil resistant container, shell, hose, cable sheath, sheared pulley sleeve, bullhead planer slider, Electromagnetic distribution valve seat, cold aging equipment, liner, bearing cage, automobile and tractor all kinds of oil pipe, piston, rope, transmission belt, textile machinery industry equipment Zero fog material, as well as daily necessities and packaging film and so on.
1. hose and hose assembly can only be used for conveying the designed materials, otherwise the service life or failure will be reduced.
2. the hose and hose assembly can only be used within its acceptable range and should not be used under the pressure of over design working pressure.
3. the medium temperature of hose and hose assembly should not exceed -40 C - +120 C, otherwise it will shorten its life. ,
4. hose and hose assembly should not be used less than the minimum bending radius of the hose to avoid bending or bending near the pipe joint, otherwise the hydraulic transmission and delivery of material or damage will be obstructed.
Rubber hose assembly.
5. hose and hose assembly shall not be used under torsion.
6. hoses and hose assemblies should be handled with care in transportation. They must not be dragged on sharp or rough surfaces, nor can they be folded or squashed.
7. hose and hose assembly should be kept clean, cleaned internally, prevented foreign objects from entering, damaged equipment.
In the industrial production of plastic hose, it is used to make bearings, cams, cams, bevel gears, all kinds of roller, pulley, pump impeller, fan blade, worm wheel, propeller, screw, nut, gasket, oil resistant seal, oil resistant seal gasket, oil resistant container, shell, hose, cable sheath, sheared pulley sleeve, bullhead The planer slider, the electromagnetic distribution seat, the cold aging equipment, the liner, the bearing cage, the various oil pipelines on the car and the tractor, the piston, the rope, the transmission belt, the zero fog material of the textile machinery industrial equipment, and the daily necessities and packaging films.
