| Place of Origin: | Zhejiang,China |
| Brand Name: | Hoonsun |
| Certification: | CE,ROHS,REACH |
| Model Number: | HX-NPMG12 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | $0.5/pc |
| Delivery Time: | 5-20days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000pcs/day |
| Item: | MG12 | Metal: | Silver Type |
|---|---|---|---|
| Range: | 4-8mm | Temp: | Static State: -40℃ To 100℃ |
| Protection: | Acid Resistance | Seal: | NBR,Silicone Rubber |
| High Light: | electrical cable gland,underwater cable gland |
||

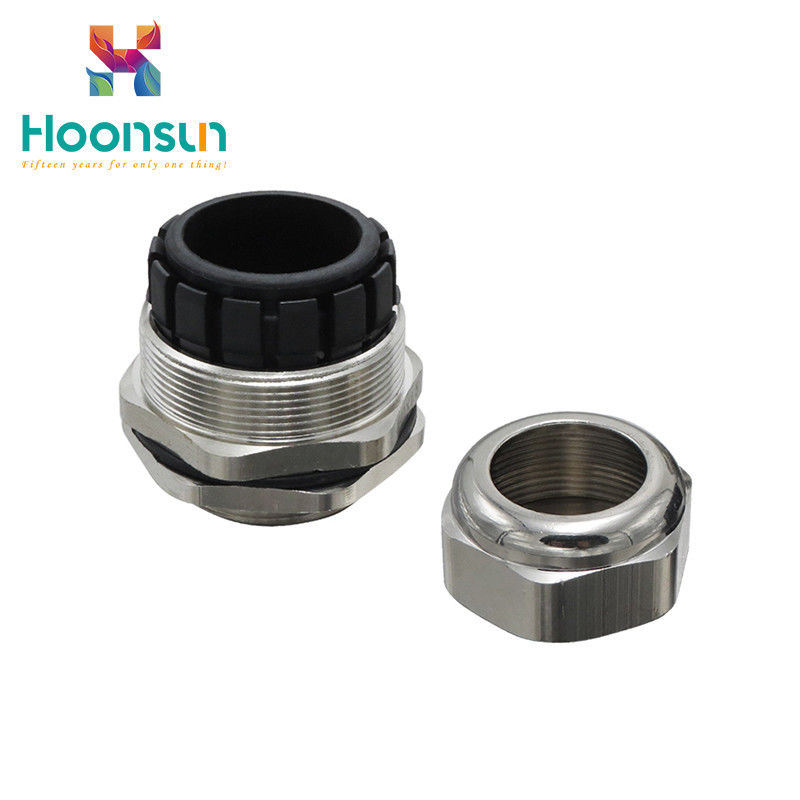

MG12 Metric Thread Strengthened Type Metal Brass Cable Gland
Specification
Item: MG12*1.5
Range: 4-8mm
Thread length: 8mm
Thread O.D.: 12mm
Joint length: 18.5mm
Spanner size: 18mm
Code: HX-NPMG12
Detail
Material: nickel-plated brass
Claw: PA(Nylon), UL94-V2
Hermetic seal: NBR, Silicone rubber
O-Ring: NBR, Silicone rubber
Protection degree: IP68-10bar
Temp: static state -40℃ to 100℃
Authentication: CE, RoHS, REACH
Product performance: waterproof, dustproof and corrosion resistance. The diameter of the clamping hose is large and the tensile strength is strong.
Under the condition of reasonable use of products, the waterproof level can reach IP68.
This product can be waterproof, dustproof, corrosion resistant, high hardness, and can work in damp, salt / acid / alkaline environment.
Uses: to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable;
it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry,
the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy.
Other Items
Item |
Range mm |
GL mm |
Thread O.D. mm |
H Joint Length mm |
Spanner size mm |
Code |
| MG12×1.5 | 4-8 | 8 | 12 | 18.5 | 18 | HX-NPMG12 |
| MG16×1.5 | 5-10 | 9 | 16 | 21.5 | 22 | HX-NPMG16 |
| MG20×1.5 | 10-14 | 9.5 | 20 | 25.5 | 27 | HX-NPMG20 |
| MG25×1.5 | 13-18 | 11 | 25 | 28 | 30 | HX-NPMG25 |
| MG32×1.5 | 18-25 | 12.5 | 32 | 33 | 40 | HX-NPMG32 |
| MG40×1.5 | 25-32 | 15 | 40 | 35 | 50 | HX-NPMG40 |
| MG50×1.5 | 32-42 | 15 | 50 | 40 | 59 | HX-NPMG50 |
| MG63×1.5 | 35-45 | 17 | 63 | 45 | 67 | HX-NPMG63 |
