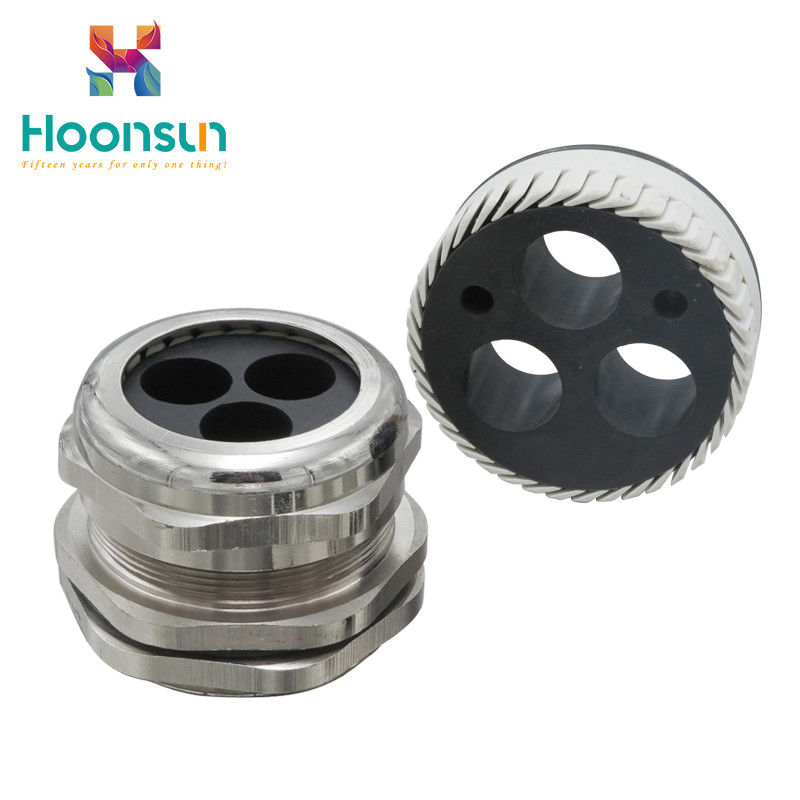

Multiple - Entry Type Waterproof Cable Gland Connector , Explosion Proof Cable Gland

Multiple - Entry Type Waterproof Cable Gland Connector , Explosion Proof Cable Gland

  • Multiple - Entry Type Waterproof Cable Gland Connector , Explosion Proof Cable Gland
  • Multiple - Entry Type Waterproof Cable Gland Connector , Explosion Proof Cable Gland
  • Multiple - Entry Type Waterproof Cable Gland Connector , Explosion Proof Cable Gland
Multiple - Entry Type Waterproof Cable Gland Connector , Explosion Proof Cable Gland
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hoonsun
Certification: CE,ROHS,REACH
Model Number: HX-NDM12
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: $0.5/pc
Delivery Time: 5-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000pcs/day
Contact Now
Detailed Product Description
Item: M12*1.5 Metal: Silver Type
Temp: Static State: -40℃ To 100℃ Protection: Acid Resistance
Seal: NBR,Silicone Rubber Hole QTY: 3 Holes
High Light:

electrical cable gland

,

underwater cable gland

Metal Brass Metric Thread M20 Multiple - Entry Type Cable Gland





Specification

Item: M20*1.5

Code: HX-NDM12



Detail

Material: nickel-plated brass

Claw: PA(Nylon), UL94-V2

Hermetic seal: NBR, Silicone rubber

O-Ring: NBR, Silicone rubber

Protection degree: IP68-10bar

Temp: static state -40℃ to 100℃

Authentication: CE, RoHS, REACH

Product performance: waterproof, dustproof and corrosion resistance. The diameter of the clamping hose is large and the tensile strength is strong.

Under the condition of reasonable use of products, the waterproof level can reach IP68.

This product can be waterproof, dustproof, corrosion resistant, high hardness, and can work in damp, salt / acid / alkaline environment.

Uses: to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable;

it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry,

the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy.





Other Items



Item F M2 M3 M4 M5 M6 M7 M8 Code
M12×1.5 PG7 / 3-1.2 2.6-1.2 2.3-1 / / / / HX-NDM12/*
M16×1.5 PG9 / 4-1.6 2.6-1.2 2.3-1 2.5-1 2-1 / / HX-NDM16/*
M18×1.5 PG11 6*10 3.5-2 4-1.6 3-1.2 2.6-1.5 2.2-1 / / HX-NDM18/*
M20×1.5 PG13.5 5*11.5 5.3-1.5 5-2 4.2-1.7 3-1.2 3-1.2 3-1.2 3-1.2 HX-NDM20/*
M22×1.5 PG16 6*14 6-2.5 3.5-1.5 4.5-2 / / / / HX-NDM22/*
M25×1.5 PG21 6*14 8.7-4 8-4 5-2 3.5-1.5 3.5-1.5 3.5-1.5 3.5-1.5 HX-NDM25/*
M27×1.5 7*18 8.7-4.5 5-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5 3.5-1.5 HX-NDM27/*
M32×1.5 / 8*22 10-5 10-5 9-4.5 8.0-4.0 7-3.5 6-3 / HX-NDM32/*
M37×1.5 PG29 / 9-6 / 9-6 / 6.5-3.5 / / HX-NDM37/*
M40×1.5 PG36 / 15-12 / / 9-6 8-5 9-6 / HX-NDM40/*
M50×1.5 PG42 / / / / 5-3 / / / HX-NDM50/*
M63×1.5 PG48 / 17-14 18-15 / / / / / HX-NDM63/*



FAQ



Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.

Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,

balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed.

We will try to make the best assistant to let you maximum satisfaction.
