| Place of Origin: | Zhejiang,China |
| Brand Name: | Hnx Nylon plug cap |
| Certification: | RoHS, ISO, CE, IP68 |
| Model Number: | PG Type |
| Minimum Order Quantity: | 20-100 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Material: | Nylon PA66 | Protection Degree: | UL94-V2 |
|---|---|---|---|
| Temp: | - 40℃ To 120℃ | Brand: | PG7 To PG48 |
| Characteristic: | Fireproof Plugs | Usage: | Connection Equipment |
| High Light: | cable gland adaptor,cable gland kit |
||

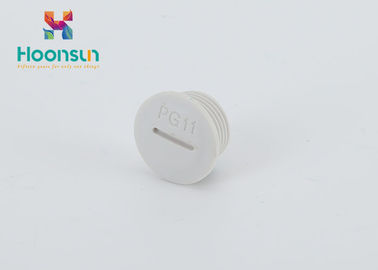

Nylon Cable Gland Accessories / PG11 Waterproof IP54 Nlyon Plugs
Material: Nylon PA66 (UL94-V2)
Working temperature: -40℃ to 100℃ for short time +120 ℃.
Product characteristics: for the preparation of the hole cargo surplus Kong Saiping, make products beautiful, waterproof, acid and alkali, grease and other general solvents.
Color: metal color.
Suitable method:
1. corresponds to the tooth gauge on the equipment, the housing type screwdriver is rotated and tightened.
2. corresponds to the aperture suitable for the equipment, fixed with nylon fixing nut and waterproof rubber gasket on the opening.
Applicable scope: for power electronic control equipment, military industry, oil, chemical, explosion-proof, textile, medical, aviation communications, machine tool and equipment manufacturing, measurement and control technology, instruments and instruments and other industries with package plastic hose, cable, wire joints.
| Item | GL mm |
Height H mm |
Spanner Size mm |
| PG7 | 5 | 8 | 14 |
| PG9 | 6 | 9 | 18 |
| PG11 | 6 | 9 | 20 |
| PG13.5 | 6.5 | 9.5 | 22 |
| PG16 | 6.5 | 9.5 | 24 |
| PG21 | 7.5 | 11 | 30 |
| PG29 | 8 | 12 | 40 |
| PG36 | 9 | 15 | 50 |
| PG42 | 10 | 16 | 57 |
| PG48 | 10 | 16 | 64 |
| M8×1 | 5 | 8 | 12 |
| M10×1 | 5 | 8 | 12 |
| M12×1.5 | 5 | 8 | 14 |
| M16×1.5 | 6 | 9 | 18 |
| M18×1.5 | 6 | 9 | 20 |
| M20×1.5 | 6.5 | 9.5 | 22 |
| M22×1.5 | 6.5 | 9.5 | 24 |
| M24×1.5 | 6.5 | 10 | 27 |
| M25×1.5 | 6.5 | 10 | 27 |
| M30×1.5 | 6.5 | 10 | 32 |
| M32×1.5 | 7 | 11 | 36 |
| M36×1.5 | 8 | 12 | 40 |
| M40×1.5 | 8 | 13 | 45 |
| M50×1.5 | 9 | 15 | 55 |
| M60×1.5 | 10 | 16 | 64 |
| M63×1.5 | 10 | 16 | 68 |
| M72×2 | 10 | 16 | 78 |
product introduction
| Cable gland | Waterproof metal cable gland type | Large type cable gland, large range type cable gland, small range type cable gland, length type cable gland, strengthened type cable gland, direct type cable gland, multiple-entry type cable gland, high temperature resistance type cable gland, double locking type cable gland, spiral type cable gland, 90º flexible pipe connector, EMC cable gland, and explosion proof cable gland, etc. |
| Nylon cable gland type | Conventional type cable gland, split type cable gland, anti bending cable gland, corrugated tubing cable gland, nylon union for flexible pipe and hose cable gland, etc. | |
| Marine cable gland type | DCG single compression type cable gland, JIS standard type cable gland, TJ clamping type cable gland and TH welded type cable gland, etc. | |
| Others | Flexible Pipe type | PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc. |
| Vent valve series | Breathable vent plug and breathable cable gland, etc. | |
| Accessories | Brass reducer, brass enlarger, standard locknut, EMC locknut, brass screw plug and waterproof junction box, etc. |
Company profile
Hongxiang - waterproof joint with high cost performance.The road is the place where you walk, and pioneering and innovating are as usual.Yueqing hongxiang connector manufacturing co., ltd. is a professional manufacturer of various specifications of wire and cable connectors. The main product is a metal cable waterproof connector with a protection grade of ip68. it has the characteristics of large clamping cable range, strong tensile force, waterproof, dustproof, salt resistance, acid and alkali resistance, alcohol resistance, grease and common solvents, etc. Other products include anti-electromagnetic cable connector, porous cable waterproof connector, marine stuffing box, reducer head, brass plug cap, etc.
