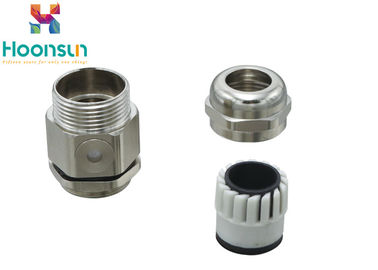

M63 X 1.5 Nickel Plated Air Permeable Brass Air Breather Valve Modified Rubber Seal

M63 X 1.5 Nickel Plated Air Permeable Brass Air Breather Valve Modified Rubber Seal

  • M63 X 1.5 Nickel Plated Air Permeable Brass Air Breather Valve Modified Rubber Seal
  • M63 X 1.5 Nickel Plated Air Permeable Brass Air Breather Valve Modified Rubber Seal
  • M63 X 1.5 Nickel Plated Air Permeable Brass Air Breather Valve Modified Rubber Seal
M63 X 1.5 Nickel Plated Air Permeable Brass Air Breather Valve Modified Rubber Seal
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hoonsun
Certification: RoHS, ISO, CE, IP68
Model Number: M12 To M63
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Nickel Plated Brass Seal: Modified Rubber
Heat Dissipation Permeability: 2400ml/s/㎡ Water Inlet Pressure: > 5 BAR
Working Temperature: -40℃ To 100℃ Plastic Claw: Nylon V2 (UL94)
High Light:

air vacuum relief valve brass

,

vacuum relief valve



M63 x 1.5 Nickel Plated Air permeable Brass Air Breather Valve M Thread Series



Material

Cap nut: brass with nickel plated
Clamping insert: Nylon PA
Seal: nitrile rubber(NBR)
Weathering rubber(EPDM)

Temperature Range
-40°C to 100°C, short time to120°C



All the membrane materials of the plastic waterproof and breathable valve products are imported from the United States.

The imported PC material is die-casting. The membrane and the shell are combined with the special process.

It has the characteristics of stable performance, simple installation, long use time and high waterproof and breathable performance.

  1. durability design should deal with all kinds of harsh environmental requirements.
  2. the balance design of breathability and water repellency is more versatile and wider.
  3. the spiral precision design, better sealing, solved the common seash lock type structure cap easy to loose and shedding defects on the market, and solved the use of pressure sensitive adhesive sticking life problem.
  4. contact water, oil and other chemical spatter quickly restore air permeability.
  5. the new hot melt composite design enables the breathable membrane and plastic material to blend into one body without damaging the film body, so as to achieve the perfect product combination scientific design.
  6. the new PC cap design prevents the upper lid from falling off, has better heat dissipation, longer service life, and better performance against bad weather.



Item Range GL Thread O.D. Joint Length Spanner size Code
M12×1.5 3-6.5 6.5 12.0 27 16 HX-NFM12
4-8 8 12.0 27 16/14 HX-NFM12-8
M16×1.5 3-6 8 16.0 27 18 HX-NFM16-6
4-8 8 16.0 27 18 HX-NFM16
5-10 8 16.0 27 20/18 HX-NFM16-10
M18×1.5 5-10 8 18.0 29 20 HX-NFM18
M20×1.5 5-10 8 20.0 32 22 HX-NFM20-10
6-12 8 20.0 32 22 HX-NFM20
10-14 8 20.0 32 24/22 HX-NFM20-12
M25×1.5 8-12 9 25.0 35 24/27 HX-NFM25-12
10-14 9 25.0 35 24/27 HX-NFM25-14
12-16 9 25.0 35 27 HX-NFM25-16
13-18 9 25.0 35 30/27 HX-NFM25-18
M32×1.5 13-18 10 32.0 54 35 HX-NFM32-18
15-22 10 32.0 54 35 HX-NFM32
18-25 10 32.0 54 40/35 HX-NFM32-25
M40×1.5 18-25 11 40.0 46 40/45 HX-NFM40-25
22-30 11 40.0 50 45 HX-NFM40-30
25-33 11 40.0 52 50/45 HX-NFM40-33
M50×1.5 32-38 13 50.0 55 57/55 HX-NFM50
M63×1.5 37-44 14 63.0 55 64/68 HX-NFM63
42-52 14 63.0 55 78/68 HX-NFM63-52
Customizable PG/G/NPT thread


Application scope:

Outdoor lighting, automobile, communication equipment,sports equipment precision electronic equipment, security, solar pv and other industries.



FAQ

Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.

Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed.

We will try to make the best assistant to let you maximum satisfaction.
