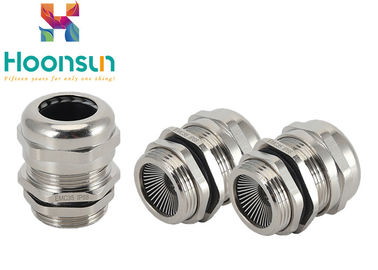

NPT1 - 1 / 4 IP 68 Low Profile Cable Gland EMC SPRING Type Nylon Claw

NPT1 - 1 / 4 IP 68 Low Profile Cable Gland EMC SPRING Type Nylon Claw

  • NPT1 - 1 / 4 IP 68 Low Profile Cable Gland EMC SPRING Type Nylon Claw
  • NPT1 - 1 / 4 IP 68 Low Profile Cable Gland EMC SPRING Type Nylon Claw
NPT1 - 1 / 4 IP 68 Low Profile Cable Gland EMC SPRING Type Nylon Claw
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx EMC Cable Gland
Certification: RoHS, ISO, CE, IP68
Model Number: NPT 1/4 -NPT 2
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Nickel-plated Brass Claw: Nylon (PA)
Advantage: After Sales Guarantee Code: NPT1 - 1 / 4
Anti Magnetic Components: Shielding Spring Range: 25-33mm
High Light:

swa cable gland


power cable gland


NPT1 - 1 / 4 Metal Waterproof IP68 Brass EMC SPRING Type Cable Gland

Product characteristics

The use of tetrafluoro gaskets can reduce friction between rubber and metal surfaces and improve service life.

Spring shielding layer is adopted, the contact surface of bottle blank is large and the installation efficiency is high.

The inner rubber is made of silica gel, which can meet the normal work of the product in extremely cold weather.

The product realizes the contact sealing between clamping ring and cable surface, which has little damage to cable and can effectively prevent the internal of motor or controller.


Joint Profile

Cable joint is an indispensable part of cable line. It can realize the connection of two cables and improve the electric field at the end of two cables.

The cable joint in the middle part of the cable line is called the intermediate joint, while the cable joint at the two ends of the line is called the terminal head.

In order to reduce the inductive electromotive force of metal sheath, shielded cable joints are needed to realize cross transposition connection in order to eliminate the circulating current generated by inductive electromotive force.


Item Range
Φ mm
Tread Length
GL mm
Joint Length
Spanner size
M12×1.5 PG7 G1/4 NPT1/4 3-6.5 6.5 21 14 HX-EMC-
4-8 8 21 17/14
M16×1.5 PG9     3-6 8 25 18
4-8 8 25 18
5-10 8 25 20/18
M18×1.5 PG11 G3/8 NPT3/8 5-10 8 25 20
M20×1.5 PG13.5 G1/2 NPT1/2 6-12 8 29 22
10-14 8 29 24/22
M22×1.5 PG16     10-14 8 29 24
M25×1.5   G3/4 NPT3/4 10-14 9 30 24/27
PG21 12-16 9 30 27
13-18 9 30 30/27
M32×1.5       15-22 10 32 35
PG29 G1 NPT1 18-25 10 32 40/35
M40×1.5       18-25 11 35 40/45
22-30 11 35 45
PG36 G1-1/4 NPT1-1/4 25-33 11 35 50/45
M50×1.5 PG42 G1-1/2 NPT1-1/2 32-38 13 39 57/55
M63×1.5 PG48 G2 NPT2 37-44 14 40 64/68
  42-52 14 40 78/68



Make the line unblocked, keep the cable sealed, and ensure the insulation level at the cable joint, so that it can run safely and reliably. If improper sealing, not only will oil leak cause oil-immersed paper drying, but also moisture will intrude into the cable interior, making paper insulation performance decline.



  1. Q: Are you trading company or manufacturer?A: We are the factory. Also we can export the goods by ourselves.
  2. Q: How long is your delivery time?A: Generally we can send out the the goods within 3-7 days if the goods are in stock.Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
  3. Q: Do you provide samples? Is it free or extra?A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
  4. Q: What is your terms of payment?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
  5. Q: How about the after-sale service?A: Any feedback or comments are welcomed.We will try to make the best assistant to let you maximum satisfaction.
