| Place of Origin: | Zhejiang,China |
| Brand Name: | Hnx Nylon Cable Gland |
| Certification: | RoHS, ISO, CE, IP68 |
| Model Number: | MG Type |
| Minimum Order Quantity: | 20-100 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Material: | PANYLON,UL94-V2 | Certificate: | CE RoHS IP68 UL |
|---|---|---|---|
| Function: | Protect Cable | Performance: | Fireproof,dustproof |
| Item: | M50 | Conduit Size: | AD54 |
| High Light: | plastic cable glands,rubber cable gland |
||

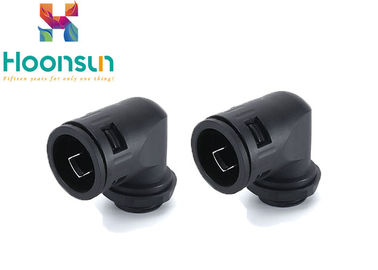

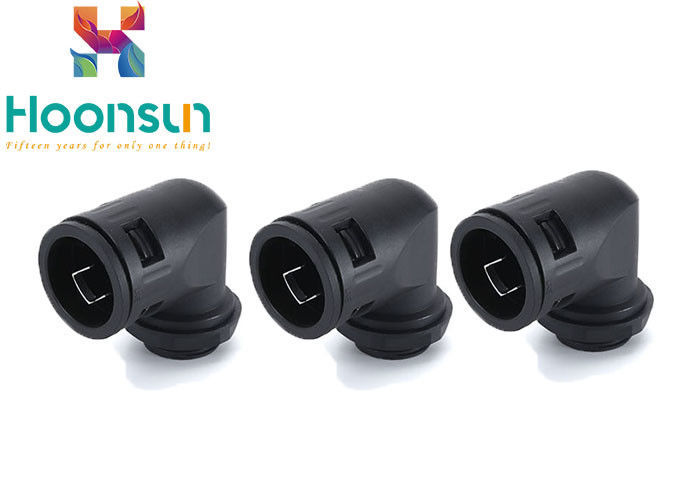

Flexible Pipe Cable Gland Fast Right Angle Fittings Union Connector
Spiral teeth specification
M, PG thread
Product material
Made of UL approved nylon PA66 (fireproof grade UL94-V2).
Working temperature
Static -40 to 100 C, heat resistance to 120 C in a short time, dynamic -20 to 80 C, and heat resistance to 100 C in a short time.
Product characteristics: special clamping claw design, clamping hose, strong pulling resistance, quick dismounting and loading and unloading, and improving installation efficiency.
Color
Black, gray, other colors can be customized.
Features
Special design of inner latch and body, loading and unloading only need no tools.
Advantage
It has good technical performance. It has the functions of vibration resistance, impact resistance, corrosion resistance, dustproof, waterproof and radiation protection, so as to ensure the equipment works stably and reliably.
It has good usability and protective facilities, and is convenient for operation, installation and maintenance.
Easy to produce, assemble, debug and pack and transport.
Beautiful, applicable and harmonizing color.
| Item | Conduit size | Thread O.D. | Thread Length | Code |
| M12×1.5 | AD10.0 | 12 | 10 | HX-NLFM12-10 |
| M16×1.5 | AD13.0 | 16 | 11.5 | HX-NLFM16-13 |
| M16×1.5 | AD15.8 | 16 | 12 | HX-NLFM16-15.8 |
| M20×1.5 | AD18.5 | 20 | 12 | HX-NLFM20-18.5 |
| M20×1.5 | AD21.2 | 20 | 13 | HX-NLFM20-21.2 |
| M25×1.5 | AD25.0 | 25 | 13 | HX-NLFM25-25 |
| M25×1.5 | AD28.5 | 25 | 13 | HX-NLFM25-28.5 |
| M32×1.5 | AD34.5 | 32 | 15 | HX-NLFM32-34.5 |
| M40×1.5 | AD42.5 | 40 | 15 | HX-NLFM40-42.5 |
| M50×1.5 | AD54.5 | 50 | 15 | HX-NLFM50-54.5 |
| PG7 | AD10.0 | 12.3 | 10 | HX-NLFPG7-10 |
| PG9 | AD13.0 | 15 | 11.5 | HX-NLFPG9-13 |
| PG11 | AD15.8 | 18.4 | 12 | HX-NLFPG11-15.8 |
| PG13.5 | AD18.5 | 20.4 | 12 | HX-NLFPG13.5-18.5 |
| PG16 | AD21.2 | 22.3 | 13 | HX-NLFPG16-21.2 |
| PG19 | AD25.0 | 25 | 13 | HX-NLFPG19-25 |
| PG21 | AD28.5 | 28 | 13 | HX-NLFPG21-28.5 |
| PG29 | AD34.5 | 36.7 | 15 | HX-NLFPG29-34.5 |
| PG36 | AD42.5 | 46.7 | 15 | HX-NLFPG36-42.5 |
| PG48 | AD54.5 | 59 | 16 | HX-NLFPG48-54.5 |
Usage
1. nylon cable waterproof connector is a supporting article for cables, which is mainly used in distribution boxes and distribution cabinets.
2. The connector can lock the cable, and the other end can be connected to the upper part of the equipment box body, or can be threaded according to the selection.
3. connect to electric equipment with internal threads at the inlet and outlet. General machinery control box, distribution board, machinery.
5. according to the installation materials produced, they can be divided into heat shrink type ( the most commonly used type ), dry wrap type, epoxy resin pouring type and cold shrink type.
6. according to the core material, it can be divided into copper core power cable connector and aluminum core power cable connector.
7. the main function is to keep the line unobstructed, keep the cable sealed, and ensure the insulation grade at the cable joint, so as to ensure its safe and reliable operation. If the seal is not good, it will not only cause the oil-immersed paper to dry up due to oil leakage, but also moisture will invade the inside of the cable, which will reduce the insulation performance of the paper.
Company advantages
1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.
2. automatic production of numerical control equipment, accurate and safe
3. 2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
