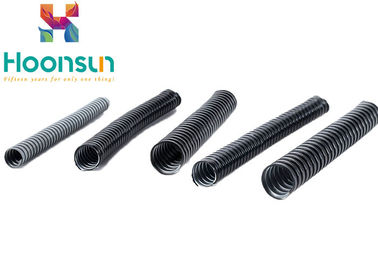

PVC Coated Galvanized Metal Steel Flexible Hose Pipe For Decorative Electrical Pipe

PVC Coated Galvanized Metal Steel Flexible Hose Pipe For Decorative Electrical Pipe

  • PVC Coated Galvanized Metal Steel Flexible Hose Pipe For Decorative Electrical Pipe
  • PVC Coated Galvanized Metal Steel Flexible Hose Pipe For Decorative Electrical Pipe
PVC Coated Galvanized Metal Steel Flexible Hose Pipe For Decorative Electrical Pipe
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx Flexible Hose Pipe
Certification: CE,RoHS
Model Number: PM/BM
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 50m
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Galvanized Steel Band Color: Black,Grey(color Customized)
Characteristic: Low Smoke & Non-toxic Temperature: -30℃ To 85℃
Code: M51 Sample: 51.0 ± 1.0
High Light:

flexible metal pipe


flexible ducting hose


PVC Coated Galvanized Flexible Metal Steel Pipe For Decorative Electrical Pipe



  • Product material: Inner layer: stainless steel / hot dip galvanized steel sheet and special insulation treatment. Outer layer: PVC (black anti-ultraviolet, anti-aging).
  • Working temperature: -25 ℃ to 70 ℃, instant heat up to 90 ℃.
  • Color types: Black / gray (Color support customization,please contact us)
  • Product Certification: European CE Certification, European RoHS Certification
  • Fireproof grade: UL94V-0, low smoke and nontoxic


Product characteristics

  • metal hoses have excellent water resistance, insulation, corrosion resistance and tensile properties.
  • covered plastic metal hose is covered by PVC, and PVC plastic is added with preservative, plus anti UV ultraviolet and anti-aging ingredients.
  • package plastic metal hose has a single button type to increase tensile strength and is not easy to break or deform.
  • plastic metal hose has super soft and excellent bending performance, and the internal smooth structure is very easy to wear.

Application fields

  • Railway, locomotive, transportation system engineering, air conditioning, various machinery, automatic control equipment, power plant, chemical, transmission and distribution system, communication system, base station erection, ship, building, factory building and outside part of the outcrop protection.


How to use it

  • first, wire will be inserted into the plastic metal hose and then with the metal hose joint.



  • protect wire and cable, achieve insulation and waterproof, and improve the bending and beauty of cables.


Item No. Trade Sizes d Inner diameter D Outer diameter Bending radius M Packing
Black Gray M BSP
HX-PM-01B HX-PM-01G 6 3/16'' 6.0±0.3 9.2±0.5 40 100M
HX-PM-02B HX-PM-02G 8 5/16'' 8.0±0.3 11.8±0.5 45 100M
HX-PM-03B HX-PM-03G 10 1/4'' 10.0±0.3 14.5±0.5 55 100M
HX-PM-04B HX-PM-04G 13 3/8'' 12.5±0.3 16.8±0.5 65 100M
HX-PM-05B HX-PM-05G 16 1/2'' 15.5±0.3 20.2±0.5 85 100M
HX-PM-06B HX-PM-06G 20 3/4'' 20.0±0.3 25.0±0.5 100 50M
HX-PM-08B HX-PM-08G 25 1'' 25.0±0.3 30.7±0.5 120 50M
HX-PM-10B HX-PM-10G 32 1 1/4'' 32.0±0.3 38.6±0.5 150 25M
HX-PM-12B HX-PM-12G 38 1 1/2'' 38.0±1.0 44.6±1.0 180 25M
HX-PM-16B HX-PM-16G 51 2'' 51.0±1.0 59.0±1.0 220 10M
HX-PM-20B HX-PM-20G 64 2 1/2'' 64.0±1.5 73.5±1.5 310 10M
HX-PM-24B HX-PM-24G 75 3'' 75.0±2.0 83.5±2.0 350 10M
HX-PM-32B HX-PM-32G 100 4'' 100.0±3.0 109.5±3.0 410 10M
HX-PM-36B HX-PM-36G 125 5'' 125.00±3.0 135.5±3.0 460 5M
HX-PM-38B HX-PM-38G 150 6'' 150.0±4.0 160.5±4.0 500 5M



  • automatic instrument signal tube, automatic instrument wire protection tube; precision optical ruler line, industrial sensor, electronic equipment line protection pipe; electrical circuit safety protection, thermal instrument capillary protection and air core high pressure optical cable internal support.
