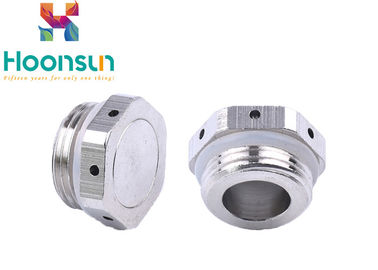

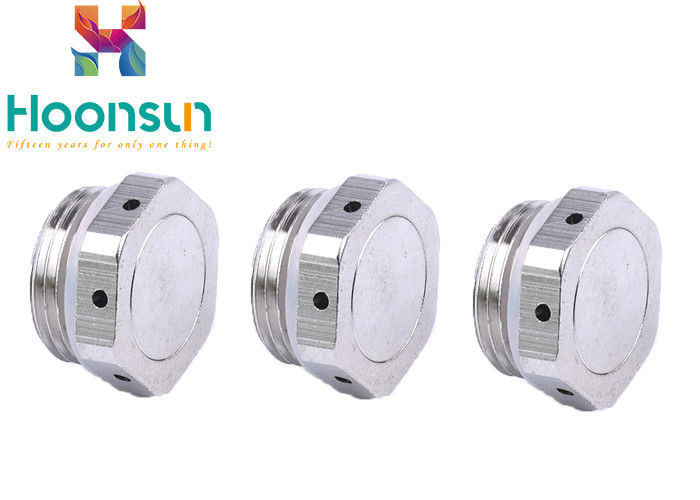

Electroplating Brass M5 * 1.5 Breather Vent Valve , High Performance Air Vent Valve

Electroplating Brass M5 * 1.5 Breather Vent Valve , High Performance Air Vent Valve

  • Electroplating Brass M5 * 1.5 Breather Vent Valve , High Performance Air Vent Valve
  • Electroplating Brass M5 * 1.5 Breather Vent Valve , High Performance Air Vent Valve
Electroplating Brass M5 * 1.5 Breather Vent Valve , High Performance Air Vent Valve
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx metal vent plug
Certification: RoHS, ISO, CE, IP68
Model Number: M5-M20
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Nickel Plated Brass Protection Degree: IP68
Surface Treatment: Electroplating Power: Hydraulic
Code: M5 Air Permeability: 94 ML/MIN
High Light:

air vacuum relief valve brass

,

vacuum relief valve



Brass Breathable Metal M5 * 1.5 Waterproof Air Vents Valve



Material

Stainless steel/Brass plated nickel/Aluminum

Protection function

O-ring can reach waterproof IP68 when DETH to 3-5M test of vibration and impact IEC-60077-1999,conform with ROHS standard.

Material

Nylon PA6

Protection function

O-ring can reach waterproof IP68 when DETH to 3-5M.

Color

Gray,white,black and customized color.

Temperature:work temperature

-40℃ to 120℃,short time to 150℃.

Air flow

325ml/minute(0.07)

Pressure in water

>5 bar

Specific applications

Charger, Inverter, IPDM, Battery, etc.

Benefits

1. Waterproof and protection of electronic components;

2. Dust-proof, keep ventilation and heat dissipation;

Three. Ventilation, keep indoor dry, prolong the use of time;

4. Reduction of condensation events through effective water vapor transport.

Installation

1. Make sure the installation surface is clean and free of oil and other contaminants.

2. As shown in the installation drawing, ventilation holes should be installed on flat, vertical surfaces for optimum performance.

Electroplating Brass M5 * 1.5 Breather Vent Valve , High Performance Air Vent Valve 0

Item Air permeability Thread Diameter
(mm)
GL
Thread Length
(mm)
Total Length
(mm)
Spanner Size
(mm)
Code
Metal
M5×0.8 94ML/Min 5 6 9.5 10 HX-BF-M5
M6×1 94ML/Min 6 6 15 10 HX-BF-M6
M8×1 147ML/Min 8 7 16 12 HX-BF-M8
M12×1.5 288ML/Min 12 7 19 14 HX-BF-M12
M16×1.5 1375ML/Min 16 7 21 18 HX-BF-M16
M20×1.5 2150ML/Min 20 7 21 22 HX-BF-M20
Nylon
M5×0.8 60ML/Min 5 6 11.6 11 HX-PF-M5
M6×1 60ML/Min 6 6 11.6 11 HX-PF-M6
M10×1 1820ML/Min 10 9 17 17 HX-PF-M10
M12×1.5 260ML/Min 12 9 17 17 HX-PF-M12
M16×1.5 748ML/Min 16 9 22 22 HX-PF-M16



Order Technical parameter characteristic Test data
1 Waterproof grade IP65-IP68
2 code SRM1300281/2
3 air permeability 25200-2800ML//min/7kpa
4 Minimum pass size <=0.5UM
5 flame retardant rating UL 94 VO
6 Temperature resistance -40ºC~125ºC
7 antiseptic properties PH:1~14
8 pressurization >=30KPA
9 Outer material stainless steel/nylon
10 Exterior color Metallic color
11 L value 10mm
12 A value M12*1.5
13 B value Φ8.0mm
14 C value Φ2.5mm
15 Installation Method Through hole:Φ11.8~12.1mm/
Thread hole:M12*1.5
16 Installation torsion 3-5kgf.cm



FAQ

Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed. We will try to make the best assistant to let you maximum satisfaction.

Electroplating Brass M5 * 1.5 Breather Vent Valve , High Performance Air Vent Valve 1
