Name: Ventilation Cable Gland Breather Plug Waterproof IP 68 With Locking Ring
Brand: YUEQING HONGXIANG CONNECTOR MANUFACTURING CO.,LTD.
SKU: M12 To M63
Availability: InStock

Home Products Air Breather Valve

Ventilation Cable Gland Breather Plug Waterproof IP 68 With Locking Ring

Product Details:

Place of Origin:	Zhejiang,China
Brand Name:	Hoonsun
Certification:	RoHS, ISO, CE, IP68
Model Number:	M12 To M63

Payment & Shipping Terms:

Minimum Order Quantity:	20-100 Pieces
Price:	Negotiation
Packaging Details:	382517mm
Delivery Time:	3-30 Day
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	30000 Pieces/Day

Contact Now

Detailed Product Description

Material:	Nickel Plated Brass	Seal:	Modified Rubber
Heat Dissipation Permeability:	2400ml/s/㎡	Working Temperature:	-40℃ To 100℃
Item:	M12*1.5	Range:	4-8mm
Highlight:	air vacuum relief valve brass , vacuum relief valve

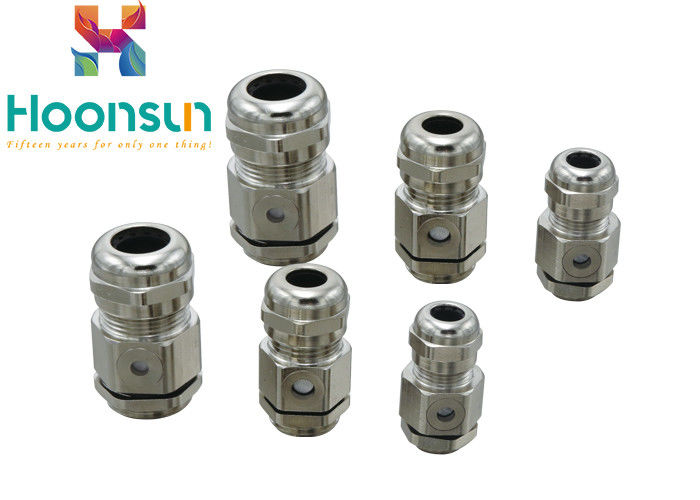

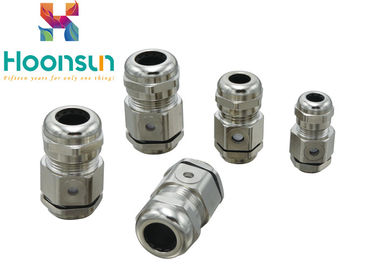

M12 * 1.5 Ventilation Cable Gland Breathable Waterproof IP 68 With Locking Ring

Material

Cap nut: brass with nickel plated
Clamping insert: Nylon PA
Seal: nitrile rubber(NBR)
Weathering rubber(EPDM)

Temperature Range

-40°C to 100°C, short time to120°C

Advantage

All membrane materials of plastic waterproof breathable valve products are imported from the United States.
The imported PC material is die casting. Special technology of membrane-shell bonding.
The utility model has the advantages of stable performance, simple installation, long service time, high waterproof and air permeability.
Durability design should deal with all kinds of harsh environmental requirements.
The balance design of permeability and waterproofing is more diversified and extensive.
The screw precision design and good sealing have solved the common loosening defect of the cap of the sea lock structure in the market, and solved the problem of using pressure sensitive adhesive to paste the life.
Contact with chemical spatters such as water and oil quickly restores air permeability.
The new hot-melt composite design integrates the permeable film and plastic material without damaging the film body, and achieves the perfect scientific design of product combination.
The new PC cover design can prevent the top cover from falling off, with better heat dissipation performance, longer service life and better weather resistance.

Item	Range	GL	Thread O.D.	Joint Length	Spanner size	Code
M12×1.5	3-6.5	6.5	12.0	27	16	HX-NFM12
M12×1.5	4-8	8	12.0	27	16/14	HX-NFM12-8
M16×1.5	3-6	8	16.0	27	18	HX-NFM16-6
	4-8	8	16.0	27	18	HX-NFM16
	5-10	8	16.0	27	20/18	HX-NFM16-10
M18×1.5	5-10	8	18.0	29	20	HX-NFM18
M20×1.5	5-10	8	20.0	32	22	HX-NFM20-10
	6-12	8	20.0	32	22	HX-NFM20
	10-14	8	20.0	32	24/22	HX-NFM20-12
M25×1.5	8-12	9	25.0	35	24/27	HX-NFM25-12
	10-14	9	25.0	35	24/27	HX-NFM25-14
	12-16	9	25.0	35	27	HX-NFM25-16
	13-18	9	25.0	35	30/27	HX-NFM25-18
M32×1.5	13-18	10	32.0	54	35	HX-NFM32-18
	15-22	10	32.0	54	35	HX-NFM32
	18-25	10	32.0	54	40/35	HX-NFM32-25
M40×1.5	18-25	11	40.0	46	40/45	HX-NFM40-25
	22-30	11	40.0	50	45	HX-NFM40-30
	25-33	11	40.0	52	50/45	HX-NFM40-33
M50×1.5	32-38	13	50.0	55	57/55	HX-NFM50
M63×1.5	37-44	14	63.0	55	64/68	HX-NFM63
M63×1.5	42-52	14	63.0	55	78/68	HX-NFM63-52
Customizable PG/G/NPT thread

Application scope

Outdoor lighting, automobile, communication equipment,sports equipment precision electronic equipment, security, solar pv and other industries.
