Place of Origin: | Zhejiang,China |
Brand Name: | Hnx Flexible Conduit Connector |
Certification: | RoHS, ISO, CE, IP68 |
Model Number: | DPJ |
Minimum Order Quantity: | 20-100 Pieces |
---|---|
Price: | Negotiation |
Packaging Details: | 38*25*17mm |
Delivery Time: | 3-30 Day |
Payment Terms: | L/C, T/T, Western Union, |
Supply Ability: | 30000 Pieces/Day |
Material: | Zinc Alloy | Protection Degree: | IP68 |
---|---|---|---|
Surface Treatment: | Galvanized Or Chrome Plated | Advantage: | Free Sample |
Connection Type: | DPJ 100 | Size: | 4'' |
Highlight: | conduit straight connector,flexible straight connector |

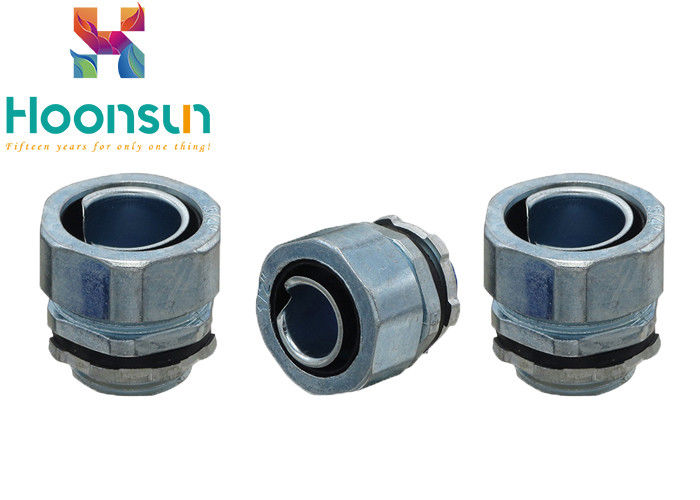

DPJ100 Waterproof Metal Hose End Style Straight Joint Connector IP65
Product material
zinc alloy die - cast, galvanized or chrome plated surface, TPE plastic, modified rubber
Protection level
IP68
Product performance
liquid leakage prevention, corrosion resistance, high mechanical strength, RoHS test passed
Scope of application
applicable to the connection of c - type and w - type waterproof metal hoses with equipment
Product introduction
Example
DPJ 15 - G1 / 2 ", ( in one end15 hose, G1 / 2 " external thread at the other end )can be customized with different threads of special specifications.
Code | Metric | inch | inch | thinsteel | DNP | NCJ |
HX-DPJ-PM01 | Φ6 | 5/16" | G1/4" | C13 | M14*1.5 | PG7 |
HX-DPJ-PM02 | Φ8 | 1/4" | G3/8" | C15 | M16*1.5 | PG9 |
HX-DPJ-PM03 | Φ10 | 3/8" | G3/8" | C15 | M16*1.5 | PG9 |
HX-DPJ-PM04 | Φ12(13) | 1/2" | G3/8" | C19 | M20*1.5 | PG11/PG13.5 |
HX-DPJ-PM05 | Φ15(16) | 3/4" | G1/2" | C19 | M20*1.5/M24*1.5 | PG13.5/PG16 |
HX-DPJ-PM06 | Φ20(19) | 1" | G3/4" | C25 | M27*2/M30*2 | PG21 |
HX-DPJ-PM07 | Φ25 | 1/1/4" | G1" | C31 | M33*2/M36*2 | PG29 |
HX-DPJ-PM08 | Φ32 | 1/1/2" | G1/1/4" | C39 | M42*2/M48*2 | PG29 |
HX-DPJ-PM09 | Φ38(40) | 2" | G1/1/2" | C51 | M48*2/M60*2 | PG36/PG42 |
HX-DPJ-PM10 | Φ51(50) | 2/1/2" | G2" | C63 | M60*2/M72*2 | Pg48 |
HX-DPJ-PM11 | Φ64(70) | 3" | G2/1/2" | C75 | M76*2 | |
HX-DPJ-PM12 | Φ75(80) | 4" | G3" | M88*2 | ||
HX-DPJ-PM13 | Φ100 | 5" | G4" | M114*2 | ||
HX-DPJ-PM14 | Φ125 | 6" | G5" | M140*2 | ||
HX-DPJ-PM15 | Φ150 | G6" | M164*2 |
( 1 ) beautiful appearance, compact structure and high strength
( 2 ) the design and assembly of the sheath and the hose are convenient, and the tensile force is strong
( 3 ) waterproof, dustproof, salt - resistant, acid-base resistant, alcohol, oil, grease and common solvents
( 4 ) in addition to the standard specification, the size and thread standard can be changed as required
