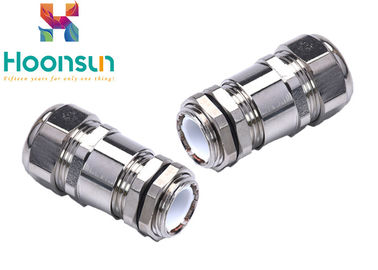

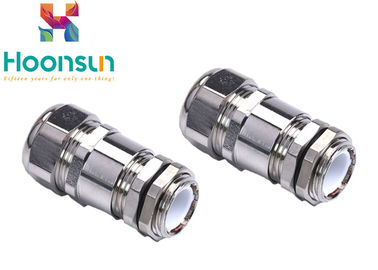

Nickel Plated Tightened Nylon Hose Joint For Nylon Flexible Pipe , Standard Sizes

Nickel Plated Tightened Nylon Hose Joint For Nylon Flexible Pipe , Standard Sizes

  • Nickel Plated Tightened Nylon Hose Joint For Nylon Flexible Pipe , Standard Sizes
  • Nickel Plated Tightened Nylon Hose Joint For Nylon Flexible Pipe , Standard Sizes
Nickel Plated Tightened Nylon Hose Joint For Nylon Flexible Pipe , Standard Sizes
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Metal Hose Fitting
Certification: RoHS, ISO, CE, IP68
Model Number: M/PG
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Production Degree: Galvanized Steel Material: Copper
Size: Standard Sizes Temperature: - 40℃ To 100℃
Code: HX-SRM22-Φ15 Conduit Size: Φ15
High Light:

brass pipe fittings


metal hose adapter


Nickel Plated Tightened Nylon Hose Joint For Nylon Flexible Pipe


The nylon hose joint with lock is used for connection of metal wire protection tube with motor, equipment inlet hole, inner thread and so on, and locking cable.

  • External metal

brass plated nickel /SS304/SS316L

  • Sealing parts

modified rubber

  • Core sleeve


  • working temperature

Static: -40 ℃ to +110 ℃, short time can reach 120 ℃ dynamics: -20 ℃ to 80 ℃, short time can reach 100 ℃

  • Product characteristics

Matching with locking cable connector, loose wire, special design for tightening, strong tension and waterproof performance, no loading and unloading tools, wide clamping cable range, strong tension resistance (>100kg). Waterproof, dust-proof, salt-proof, acid-alkali-proof, alcohol-proof, oil-proof, grease-proof and general solvents. In addition to the standard specifications, size and thread standards can also be changed as required.


Thread Range GL Spanner size fits totubing size(Nominal inner)mm Code
M12*1.5-Φ6 3-5.5 6.5 18/17/14 Φ6 HX-SRNM12-Φ6
M16*1.5-Φ8 4-7 8 20/19/18 Φ8 HX-SRNM16-Φ8
M18*1.5-Φ10 5-9 8 24/23/20 Φ10 HX-SRNM18-Φ10
M20*1.5-Φ12 6-11 8 26/26/20 Φ12 HX-SRNM20-Φ12
M20*1.5-Φ15 6-12 8 30/27/24 Φ15 HX-SRNM20-Φ15
M22*1.5-Φ15 8-14 8 30/30/24 Φ15 HX-SRNM22-Φ15
M24*1.5-Φ15 8-14 9 30/30/27 Φ15 HX-SRNM24-Φ15
M25*1.5-Φ15 8-14 9 30/30/28 Φ15 HX-SRNM25-Φ15
M25*1.5-Φ20 13-18 9 36/35/30 Φ20 HX-SRNM25-Φ20
M32*1.5-Φ20 13-18 10 36/35/36 Φ20 HX-SRNM32-Φ20
M32*1.5-Φ25 15-22 10 45/40/36 Φ25 HX-SRNM32-Φ25
M36*2-Φ25 15-22 10 45/45/40 Φ25 HX-SRNM36-Φ25
M40*1.5-Φ32 22-30 11 55/52/45 Φ32 HX-SRNM40-Φ32
M40*1.5-Φ38 22-30 11 60/58/50 Φ32 HX-SRNM40-Φ38
M48*1.5-Φ32 22-32 11 55/52/55 Φ38 HX-SRNM48-Φ32
M50*1.5-Φ38 30-35 13 60/58/55 Φ38 HX-SRNM50-Φ38
M50*1.5-Φ51 30-35 13 75/75/75 Φ51 HX-SRNM50-Φ51
M56*2-Φ38 30-38 13 60/58/60 Φ38 HX-SRNM56-Φ38
M60*1.5-Φ51 37-44 14 75/75/70 Φ51 HX-SRNM60-Φ51
M63*1.5-Φ51 37-44 14 75/75/70 Φ51 HX-SRNM63-Φ51


  • Product introduction

Metal hose joint is a high quality hose in modern industrial pipeline. It is mainly composed of bellows, net sleeves and joints. The inner tube is spiral or annular thin-walled stainless steel bellows. The net cover of the outer layer of bellows is made of stainless steel wire. Or according to certain parameters to process steel strip. Joints or flanges at both ends of hoses. Match with the joint or flange of the customer's pipeline. The bellows of hoses are made of very thin seamless tubes. Welded stainless steel pipe or multi-channel, by high-precision plastic processing. Because of the elastic properties of bellows, Hose has good flexibility and fatigue resistance. This makes it easy to absorb various cyclic loads of motion and deformation. Especially in pipeline system, it has the ability to compensate for large displacement.
