| Place of Origin: | Zhejiang,China |
| Brand Name: | Hoonsun |
| Certification: | RoHS, ISO, CE, IP68 |
| Model Number: | M12 To M63 |
| Minimum Order Quantity: | 20-100 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
| Material: | Nickel Plated Brass | Seal: | Modified Rubber |
|---|---|---|---|
| Heat Dissipation Permeability: | 2400ml/s/㎡ | Working Temperature: | -40℃ To 100℃ |
| Item: | M40*1.5 | Range: | 25-33mm Cable & Wire |
| High Light: | air vacuum relief valve brass,vacuum relief valve |
||

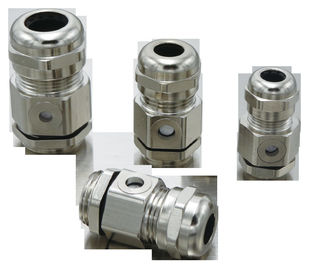

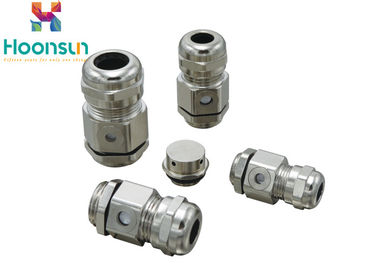

Rubber Permeable Type Air Breather Valve Cable Gland/Ventilation Cable Gland

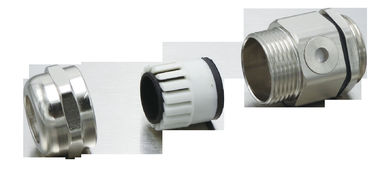

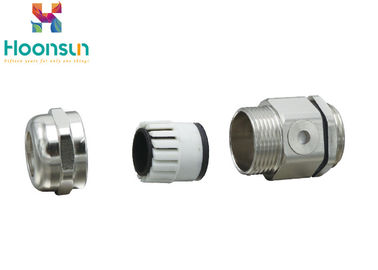

Material
sealing nut: nickel plated brass
plastic claw: Nylon V2
Seal:NBR
protection degree: in the specified cable outer diameter and the appropriate o-ring Protection degree can reach IP68,the waterproof degree can reach IP68.
Temperature Range
-40°C to 100°C, short time to120°C
Characteristics
1) strong antioxidation, no rust
2) do not release harmful substances, pollution-free
3) the use of stainless steel, high hardness
4) a temperature of 120 degrees Celsius in a short period of time in a static environment.
| Item | Range | GL | Thread O.D. | Joint Length | Spanner size | Code |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 27 | 16 | HX-NFM12 |
| 4-8 | 8 | 12.0 | 27 | 16/14 | HX-NFM12-8 | |
| M16×1.5 | 3-6 | 8 | 16.0 | 27 | 18 | HX-NFM16-6 |
| 4-8 | 8 | 16.0 | 27 | 18 | HX-NFM16 | |
| 5-10 | 8 | 16.0 | 27 | 20/18 | HX-NFM16-10 | |
| M18×1.5 | 5-10 | 8 | 18.0 | 29 | 20 | HX-NFM18 |
| M20×1.5 | 5-10 | 8 | 20.0 | 32 | 22 | HX-NFM20-10 |
| 6-12 | 8 | 20.0 | 32 | 22 | HX-NFM20 | |
| 10-14 | 8 | 20.0 | 32 | 24/22 | HX-NFM20-12 | |
| M25×1.5 | 8-12 | 9 | 25.0 | 35 | 24/27 | HX-NFM25-12 |
| 10-14 | 9 | 25.0 | 35 | 24/27 | HX-NFM25-14 | |
| 12-16 | 9 | 25.0 | 35 | 27 | HX-NFM25-16 | |
| 13-18 | 9 | 25.0 | 35 | 30/27 | HX-NFM25-18 | |
| M32×1.5 | 13-18 | 10 | 32.0 | 54 | 35 | HX-NFM32-18 |
| 15-22 | 10 | 32.0 | 54 | 35 | HX-NFM32 | |
| 18-25 | 10 | 32.0 | 54 | 40/35 | HX-NFM32-25 | |
| M40×1.5 | 18-25 | 11 | 40.0 | 46 | 40/45 | HX-NFM40-25 |
| 22-30 | 11 | 40.0 | 50 | 45 | HX-NFM40-30 | |
| 25-33 | 11 | 40.0 | 52 | 50/45 | HX-NFM40-33 | |
| M50×1.5 | 32-38 | 13 | 50.0 | 55 | 57/55 | HX-NFM50 |
| M63×1.5 | 37-44 | 14 | 63.0 | 55 | 64/68 | HX-NFM63 |
| 42-52 | 14 | 63.0 | 55 | 78/68 | HX-NFM63-52 | |
| Customizable PG/G/NPT thread | ||||||
Application scope
Outdoor lighting, automobile, communication equipment,sports equipment precision electronic equipment, security, solar pv and other industries.
Our service
We welcome customers to provide us with suggestions related to products.
Any question can be told to us by email or telephone, and we will handle it for you in a timely manner.
Quick and accurate deliveryWe ensure the quality of our products is excellent.
Products can be customized according to specific requirements
Company advantages
Yueqing hongxiang connector manufacturing co., ltd.is a professional manufacturer of various specifications of wire and cable connectors.
specializing in the production of cable connectors for 12 years, we specializes in launch various new products, and have many patented products.
automatic production of numerical control equipment, accurate and safe
2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
