Place of Origin: | Zhejiang,China |
Brand Name: | Hnx Explosion Proof Cable Gland |
Certification: | RoHS, ISO, CE,REACH |
Model Number: | EX-1 |
Minimum Order Quantity: | 10 Pieces |
---|---|
Price: | Negotiation |
Packaging Details: | 38*25*17mm |
Delivery Time: | 3-30 Day |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 30000 Pieces/Day |
Material: | Brass / SS304 / SS316L | Type: | Armored Cable Gland |
---|---|---|---|
Max Temperature: | 120 ℃ | Explosion-Proof: | Exd ⅡC Gb |
Surface Treatment: | Φ34 - Φ41 | Code: | EX1-6 |
High Light: | high temperature cable gland,flameproof cable gland |

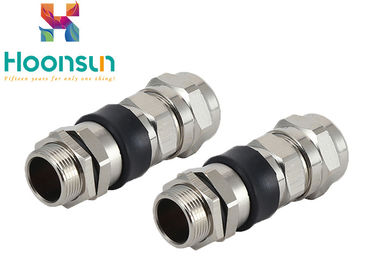

EX2 Double seal armored Cable Gland , Waterproof IP68 Grade Armored Cable Gland
Brass /SS304/SS316L
IP66-10bar
Exd II C Gb
UL94-V2
O-ring groove, closer connection, improved sheath to protect connection safety.
The tight ring is specially designed with strong pulling force, which does no harm to the motor.
No need to disassemble the fixed head, the cable can be directly penetrated into the tighten, and time saving is convenient.
Waterproof, dustproof, salt, weak acid, alcohol, oil, grease and general solvent.
In the range of the specified bayonet, use the O type seal ring to tighten the head to achieve the IP68 protection level.
The metal cable gland is a matching product of the cable, the cable gland can lock the cable, the other end can be connected to the equipment box, or the electric equipment which is connected to the internal thread by the selection of thread.
Customers can be customized according to their actual needs.
Specifications | insert thread size(AG) |
Cable acceptance detail |
maximum length (H) | GL |
Six an gle size |
||||||||
Inner sheath/core line | Cable outside dameter(B) | ||||||||||||
Metric | NPT.G |
inner inners heath |
maxi mum core line |
minim um |
max imum |
Dirc tion 1 |
dire ction 2 |
on the edge |
Dia gonal |
||||
HX-EX-1-01o | M20 | 1/2" | 9 | 10 | 6 | 5.5 | 12 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 27.7 |
HX-EX-1-02S | M20 | 1/2" | 9 | 10 | 6 | 9.5 | 16 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 27.7 |
HX-EX-1-02 | M20 | 1/2"-3/4" | 11.2 | 12.5 | 10 | 12.5 | 20.5 | 0.9/1.25 | 0/0.7 | 35 | 15 | 30 | 34.6 |
HX-EX-1-03 | M25 | 3/4"-1" | 16.3 | 18.4 | 21 | 16.9 | 26 | 1.25/1.6 | 0/0.7 | 35 | 15 | 36 | 41.6 |
HX-EX-1-04 | M32 | 1"-1 1/4" | 22 | 24.7 | 42 | 22 | 33 | 1.6/2.0 | 0/0.7 | 39 | 15 | 46 | 53.1 |
HX-EX-1-05 | M40 | 1 1/4"-1 1/2" | 26.5 | 29.7 | 60 | 28 | 41 | 1.8/2.5 | 0/0.7 | 48 | 15 | 55 | 63.5 |
HX-EX-1-06 | M50 | 1-1/2"-2" | 37.2 | 41.7 | 80 | 36 | 52.6 | 1.8/2.5 | 0/1 | 53 | 15 | 65 | 75.1 |
HX-EX-1-07 | M63 | 2"-2 1/2" | 47.6 | 53.5 | 100 | 46 | 65.3 | 1.8/2.5 | 0/1 | 58 | 15 | 80 | 92.4 |
HX-EX-1-08 | M75 | 2 1/2"-3" | 60 | 65.3/66.2 | 120 | 57 | 78 | 1.8/2.5 | 0/1 | 65 | 15 | 95 | 109.6 |
Our products are divided into nylon cable glands and metal cable glands according to the gland material. The metal cable glands are also divided into brass cable glands, stainless steel cable glands and zinc alloy cable glands, etc.
The cable gland is divided into waterproof cable gland, explosion-proof cable gland, anti bending cable gland, double locking cable gland, plastic hose cable gland, metal hose cable gland and marine stuffing box according to function.
Indoor: LED lamp, robot industry, manufacturing industry, maintenance industry, etc.
Outdoor: circuit, electric box, wind energy industry, solar energy industry, charging pile industry, etc.
Our cable gland has a wide range of uses, which can be used to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy. The cable connector has corrosion resistance and can be applied to marine operations, chemical equipment and so on.
We welcome customers to provide us with suggestions related to products.Any question can be told to us by email or telephone, and we will handle it for you in a timely manner.Quick and accurate deliveryWe ensure the quality of our products is excellent.Products can be customized according to specific requirements
1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.
2. automatic production of numerical control equipment, accurate and safe
3. 2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
