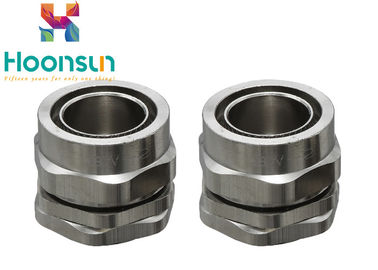

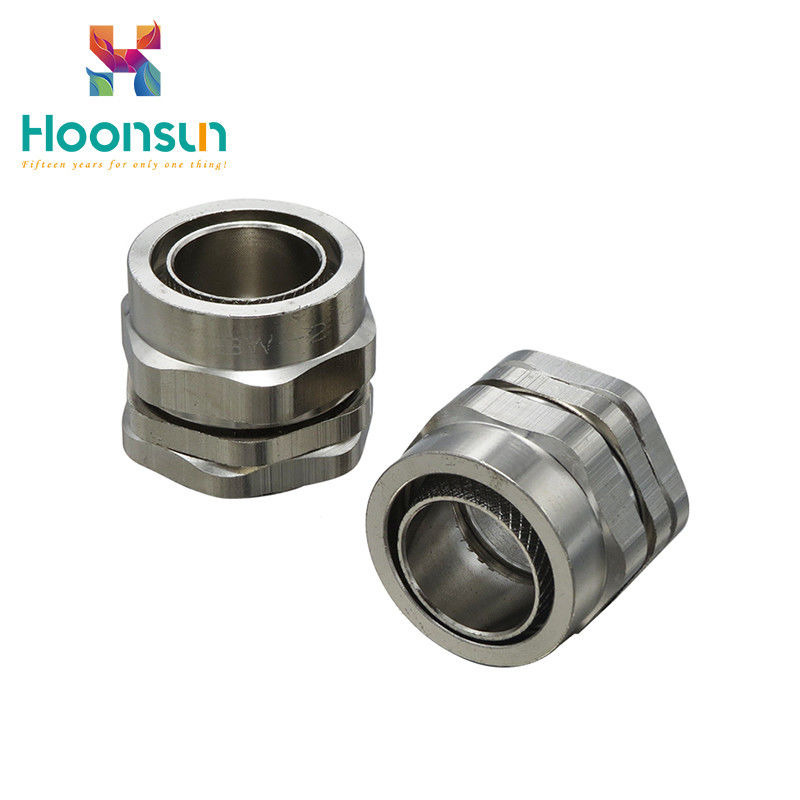

Fire Rated Nickel Plated Brass Cable Gland Dustproof IP68

Fire Rated Nickel Plated Brass Cable Gland Dustproof IP68

  • Fire Rated Nickel Plated Brass Cable Gland Dustproof IP68
  • Fire Rated Nickel Plated Brass Cable Gland Dustproof IP68
  • Fire Rated Nickel Plated Brass Cable Gland Dustproof IP68
Fire Rated Nickel Plated Brass Cable Gland Dustproof IP68
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx BW type cable gland
Certification: RoHS, ISO, CE, IP68,REACH
Model Number: BW Series
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Brass Sealing Material: Neoprene,silicone Rubber
Max Temperature: 100 ℃; Short Time To 120℃ Performance: Explosion Proof
Protection Degree: Exd ⅡC Gb Scope Of Application: Hazardous Area
High Light:

Nickel Plated Brass Cable Gland


IP68 Nickel Plated Brass Cable Gland


Dustproof Brass Cable Gland



Fire Rated Cable Gland With Nickel Plated Brass,BW Explosionproof Brass Cable Connector

  1. Features: the joint can be closed to the inner sheath and outer sheath of the cable. Through the truncation of the armoured wire, the mechanical maintenance of the cable and the continuity of the power transmission are maintained. The armoured wire clip can keep the electrical connection between the armoured cable and the cable joint.
  2. Protection grade: IP68-10bar
  3. Characteristics: waterproof, RoHS test qualified, for waterproof, oil and dustproof, high solid, high tensile force and can work in damp, salt / acid / alkaline environment.
  4. Application: control motor, electric motor, lighting equipment, refrigerated air conditioning, household appliances, measurement machinery, vehicle / ship equipment matching, communication equipment, and outdoor wire and cable engineering matching and other harsh environment

Fire Rated Nickel Plated Brass Cable Gland Dustproof IP68 0

Item Thread Range GL
Thread Length
AG Thread O.D. H Joint Length Spanner size Code
Min. Max.
BW-0 M20×1.5 12.6 16.5 10 20 23 22 HX-BW0
BW-1 M20×1.5 15.9 19.0 10 20 26 27/25/24 HX-BW1
BW-2 M25×1.5 20.6 26.5 10 25 29 35 HX-BW2
BW-3 M32×1.5 26.5 33.0 10 32 32 40 HX-BW3
BW-4 M40×1.5 34.9 40.5 15 40 36 50 HX-BW4
BW-5 M50×1.5 44.5 51.0 15 50 45 64 HX-BW5
BW-6 M63×1.5 57.0 67.0 15 63 50 82 HX-BW6
BW-7 M75×2 68.0 79.5 15 75 60 96 HX-BW7
BW-8 M82×2 74.0 83.0 15 82 65 100 HX-BW8
BW-9 M90×2 82.0 91.0 15 90 69 110 HX-BW9
BW-10 M100×2 93.0 100.0 15 100 88 120 HX-BW10


  • product introduction

Our products are divided into nylon cable glands and metal cable glands according to the gland material. The metal cable glands are also divided into brass cable glands, stainless steel cable glands and zinc alloy cable glands, etc.

The cable gland is divided into waterproof cable gland, explosion-proof cable gland, anti bending cable gland, double locking cable gland, plastic hose cable gland, metal hose cable gland and marine stuffing box according to function.


  • Cable gland use

Indoor: LED lamp, robot industry, manufacturing industry, maintenance industry, etc.Outdoor: circuit, electric box, wind energy industry, solar energy industry, charging pile industry, etc.


  • Our service

We welcome customers to provide us with suggestions related to products.Any question can be told to us by email or telephone, and we will handle it for you in a timely manner.Quick and accurate deliveryWe ensure the quality of our products is excellent.Products can be customized according to specific requirements


  • Company advantages

Yueqing hongxiang connector manufacturing co., ltd.is a professional manufacturer of various specifications of wire and cable connectors. The main product is a metal cable waterproof connector with a protection grade of ip68.It has the characteristics of large clamping cable range, strong tensile force, waterproof, dustproof,salt resistance, acid and alkali resistance, alcohol resistance, grease and common solvents, etc.Other products include anti-electromagnetic cable connector, porous cable waterproof connector, marine stuffing box, reducer head, brass plug ca
