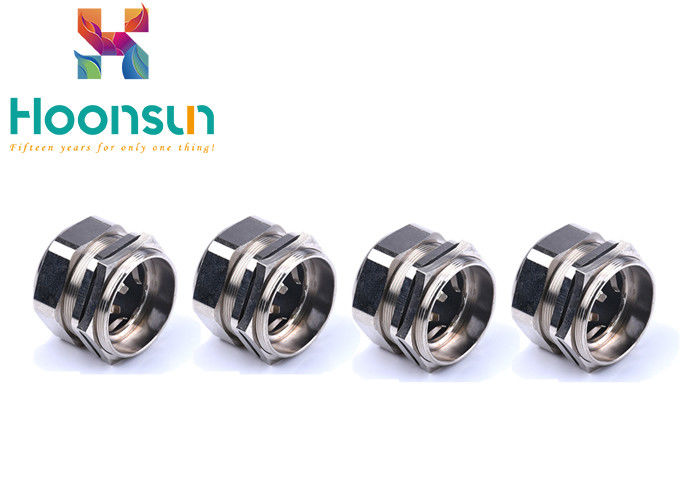

NPT1/4 Nickel Plated Brass EMC Power Cable Gland 18mm Thread

NPT1/4 Nickel Plated Brass EMC Power Cable Gland 18mm Thread

  • NPT1/4 Nickel Plated Brass EMC Power Cable Gland 18mm Thread
  • NPT1/4 Nickel Plated Brass EMC Power Cable Gland 18mm Thread
  • NPT1/4 Nickel Plated Brass EMC Power Cable Gland 18mm Thread
NPT1/4 Nickel Plated Brass EMC Power Cable Gland 18mm Thread
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx EMC Cable Gland
Certification: RoHS, ISO, CE, IP68
Model Number: G 1/4 -G 2
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Nickel-plated Brass Claw: Nylon (PA)
Advantage: After Sales Guarantee Code: G1
Anti Magnetic Components: Shielding Spring Thread Length: 18-25mm
High Light:

EMC Power Cable Gland

,

Nickel Plated Brass EMC Cable Gland

,

18mm Thread EMC Cable Gland

Factory EMC Metal Nickel Plated Brass Cable Gland 18MM-25mm For Cable Protection

Product characteristics

  1. Spring shielding layer is adopted, the contact surface of bottle blank is large and the installation efficiency is high.
  2. The use of tetrafluoro gaskets can reduce friction between rubber and metal surfaces and improve service life.
  3. The product realizes the contact sealing between clamping ring and cable surface, which has little damage to cable and can effectively prevent the internal of motor or controller.
  4. The inner rubber is made of silica gel, which can meet the normal work of the product in extremely cold weather.

Uses: to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy

NPT1/4 Nickel Plated Brass EMC Power Cable Gland 18mm Thread 0

Item Range
Φ mm
Tread Length
GL mm
Joint Length
mm
Spanner size
mm
Code
M PG G NPT
M12×1.5 PG7 G1/4 NPT1/4 3-6.5 6.5 21 14 HX-EMC-
“Item”-T
4-8 8 21 17/14
M16×1.5 PG9     3-6 8 25 18
4-8 8 25 18
5-10 8 25 20/18
M18×1.5 PG11 G3/8 NPT3/8 5-10 8 25 20
M20×1.5 PG13.5 G1/2 NPT1/2 6-12 8 29 22
10-14 8 29 24/22
M22×1.5 PG16     10-14 8 29 24
M25×1.5   G3/4 NPT3/4 10-14 9 30 24/27
PG21 12-16 9 30 27
13-18 9 30 30/27
M32×1.5       15-22 10 32 35
PG29 G1 NPT1 18-25 10 32 40/35
M40×1.5       18-25 11 35 40/45
22-30 11 35 45
PG36 G1-1/4 NPT1-1/4 25-33 11 35 50/45
M50×1.5 PG42 G1-1/2 NPT1-1/2 32-38 13 39 57/55
M63×1.5 PG48 G2 NPT2 37-44 14 40 64/68
  42-52 14 40 78/68



Effect



Make the line unblocked, keep the cable sealed, and ensure the insulation level at the cable joint, so that it can run safely and reliably. If improper sealing, not only will oil leak cause oil-immersed paper drying, but also moisture will intrude into the cable interior, making paper insulation performance decline.



Our cable gland has a wide range of uses, which can be used to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy. The cable connector has corrosion resistance and can be applied to marine operations, chemical equipment and so on.



FAQ

Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.

Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed.

We will try to make the best assistant to let you maximum satisfaction.
