Place of Origin: | Zhejiang,China |
Brand Name: | Hnx Metal Reducer |
Certification: | RoHS, ISO, CE, IP68 |
Model Number: | M/PG |
Minimum Order Quantity: | 20-100 Pieces |
---|---|
Price: | Negotiation |
Packaging Details: | 38*25*17mm |
Delivery Time: | 3-30 Day |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 30000 Pieces/Day |
Material: | Nickel-plated Brass | Protection Degree: | IP54 |
---|---|---|---|
Surface Treatment: | Electroplating | Brand: | M12-M100,NPT1/2-NPT3 |
Effect: | Variable Diameter | Type: | EMC Locknut |
High Light: | Nickel Plated Brass Cable Gland Accessories,Electroplating Brass Cable Gland Accessories,NPT1/2 Cable Gland Accessories |

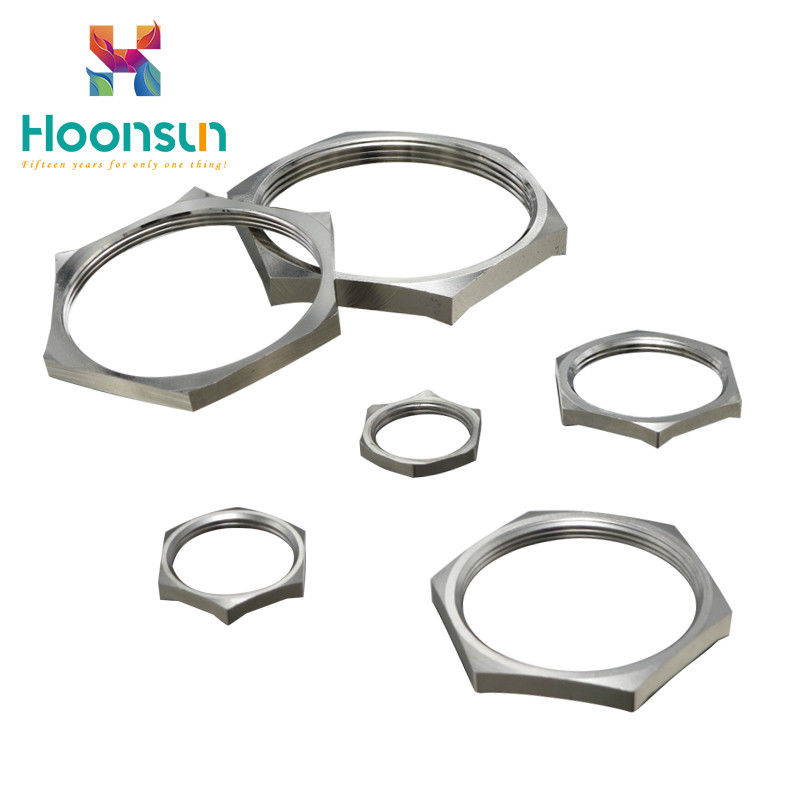

Material: nickel-plated brass
Application:for use with most electrical fittings
Performance:
scraping the protective layer on the top of the body through 6 sharp corners on the nut, and contacting the conductive layer to generate static electricity.
Usage method:
As the normal nut is used, the nut is wriggled directly. In the continuous tightening process, the protective layer of the nut squirt can achieve the effect of electrostatic conduction.
Item | GL mm |
Height H mm |
Spanner Size mm |
M12*1.5 | HX-LNM12EMC | 3 | 14 |
M14*1.5 | HX-LNM14EMC | 3 | 17 |
M16*1.5 | HX-LNM16EMC | 3 | 18 |
M18*1.5 | HX-LNM18EMC | 3 | 20 |
M20*1.5 | HX-LNM20EMC | 3 | 22 |
M22*1.5 | HX-LNM22EMC | 3.2 | 24 |
M24*1.5 | HX-LNM24EMC | 3.5 | 27 |
M25*1.5 | HX-LNM25EMC | 3.5 | 27 |
M27*1.5 | HX-LNM27EMC | 4 | 30 |
M30*1.5 | HX-LNM30EMC | 4 | 32 |
M32*1.5 | HX-LNM32EMC | 4 | 35 |
M33*1.5 | HX-LNM33EMC | 4 | 36 |
M36*1.5 | HX-LNM36EMC | 4 | 40 |
M37*1.5 | HX-LNM37EMC | 4 | 40 |
M40*1.5 | HX-LNM40EMC | 4.5 | 45 |
M42*1.5 | HX-LNM42EMC | 5 | 45 |
M47*1.5 | HX-LNM47EMC | 5.5 | 50 |
M48*1.5 | HX-LNM48EMC | 5.5 | 52 |
M50*1.5 | HX-LNM50EMC | 5.5 | 55 |
M54*1.5 | HX-LNM54EMC | 5.5 | 57 |
M60*1.5 | HX-LNM60EMC | 6 | 64 |
M63*1.5 | HX-LNM63EMC | 6 | 68 |
M64*2 | HX-LNM64EMC | 6 | 68 |
M72*2 | HX-LNM72EMC | 8.5 | 78 |
M75*2 | HX-LNM75EMC | 8.5 | 78 |
M80*2 | HX-LNM80EMC | 9 | 88 |
M88*2 | HX-LNM88EMC | 9 | 94 |
M100*2 | HX-LNM100EMC | 9 | 110 |
Item | GL mm |
Height H mm |
Spanner Size mm |
PG7 | HX-LNPG7/EMC | 3 | 15 |
PG9 | HX-LNPG9/EMC | 3 | 18 |
PG11 | HX-LNPG11/EMC | 3 | 21 |
PG13.5 | HX-LNPG13.5/EMC | 3 | 23 |
PG16 | HX-LNPG16/EMC | 3.2 | 25 |
PG19 | HX-LNP19/EMC | 3.5 | 27 |
PG21 | HX-LNPG21/EMC | 4 | 30 |
PG25 | HX-LNPG25/EMC | 4 | 35 |
PG29 | HX-LNPG29/EMC | 4 | 40 |
PG36 | HX-LNPG36/EMC | 5.5 | 50 |
PG42 | HX-LNPG42/EMC | 6 | 57 |
PG48 | HX-LNPG48/EMC | 6.5 | 64 |
PG63 | HX-LNPG63/EMC | 8.5 | 78 |
G1/2 | HX-LNG1/2EMC | 3 | 23 |
G3/4 | HX-LNG3/4EMC | 4 | 30 |
G1 | HX-LNG1EMC | 4 | 40 |
G1-1/4 | HX-LNG1-1/4EMC | 5.5 | 50 |
G1-1/2 | HX-LNG1-1/2EMC | 5.5 | 57 |
G2 | HX-LNG2EMC | 6 | 64 |
G2-1/2 | HX-LNG2-1/2EMC | 8.5 | 78 |
G3 | HX-LNG3EMC | 9 | 94 |
NPT1/2 | HX-LNNPT1/2EMC | 3 | 23 |
NPT3/4 | HX-LNNPT3/4EMC | 4 | 30 |
NPT1 | HX-LNNPT1EMC | 4 | 40 |
NPT1-1/4 | HX-LNNPT1-1/4EMC | 5.5 | 50 |
NPT1-1/2 | HX-LNNPT1-1/2EMC | 5.5 | 57 |
NPT2 | HX-LNNPT2EMC | 6 | 64 |
NPT2-1/2 | HX-LNNPT2-1/2EMC | 8.5 | 78 |
NPT3 | HX-LNNPT3EMC | 9 | 94 |
Company profile
Hongxiang - waterproof joint with high cost performance.The road is the place where you walk, and pioneering and innovating are as usual.Yueqing hongxiang connector manufacturing co., ltd. is a professional manufacturer of various specifications of wire and cable connectors. The main product is a metal cable waterproof connector with a protection grade of ip68. it has the characteristics of large clamping cable range, strong tensile force, waterproof, dustproof, salt resistance, acid and alkali resistance, alcohol resistance, grease and common solvents, etc. Other products include anti-electromagnetic cable connector, porous cable waterproof connector, marine stuffing box, reducer head, brass plug cap, etc.
FAQ
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the goods are in stock. Or it is should be 7- 30 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Q: How about the after-sale service?
A: Any feedback or comments are welcomed. We will try to make the best assistant to let you maximum satisfaction.
