|Place of Origin:||Zhejiang,China|
|Brand Name:||Hnx waterproof cable gland|
|Certification:||RoHS, ISO, CE, IP68,REACH|
|Minimum Order Quantity:||10 Pieces|
|Delivery Time:||3-30 Day|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||30000 Pieces/Day|
|Material:||Chromium-plated Brass||Type:||Clamping Type|
|Max Temperature:||120 ℃||Performance:||Corrosion Resistance|

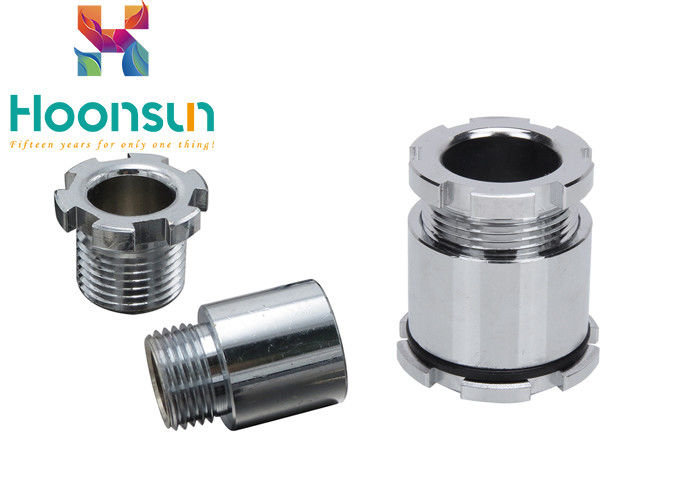

26MM Waterproof Marine Cable Gland,
IP54 Clamping Cable Gland,
Corrosion Resistance Clamping Cable Gland
TJ marine clamped stuffing box is used for cable lock or matching on the cabinet of electric cabinet and sealed with epoxy resin cement. The utility model has the advantages of simple structure, low cost, various forms, strong installation, convenient operation and good sealing effect. Stuffing box has been widely used in shipbuilding, power distribution cabinet production, locomotive and rolling stock, bridge, power and communication industries.
Product:Clamping Type cable gland
Structure:sealing nut, washer, seal, body, O-ring and lock nut
The sealing nut, body and lock nut made by nickel-plated brass, the O-ring and seal made by NBR, silicone rubber, the metal washer made by nickel-plated hoop.
Working temperature: static: -40 degrees C to 110 degrees centigrade, up to 120 degrees C.
Dynamic: -20 degrees C to 80 degrees C, up to 100 degrees centigrade.
Applications: instrumentation, ships, machinery, electrical, transportation, medicine, oil fields and other cable fixed.
Note: the cable gland can be specially customized according to the actual needs of the customer.
Installation environment requirements
The altitude is not more than 2000 meters. Ambient air temperature is not higher than +40 C, not less than -5 C, and the average temperature within 24 hours is not more than +35 C. The air is clean at the installation site. The relative humidity of the atmosphere is not more than 50% at the ambient temperature of 40. The average temperature of the wettest month is 25 and the average relative humidity is 90%, and the condensation on the surface of the product due to the change of temperature is considered.
Conductor-to-conductor connections require low resistance and adequate mechanical strength, and there are no sharp corners at the junctions. The connection of medium and low voltage cable conductors is usually pressed.
(1) Choosing suitable conductors and connectors with electrical conductivity and mechanical strength;
(2) The gap between the inner diameter of the pressure pipe and the outer diameter of the connecting core is 0.8-1.4 mm.
(3) The resistance value of the joint after pressing shall not be higher than 1.2 times of that of the conductor with equal cross-section, and the tensile strength of the copper conductor joint shall not be less than 60N/mm2;
(4) Before crimping, the outer surface of the conductor is coated with conductive glue on the inner surface of the connecting pipe, and the oxide film is damaged by the wire brush.
(5) Connect the sharp corners and burrs on the pipes and wires, and smooth them with a file or sandpaper.
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the goods are in stock.
Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,
balance before shipment.
Q: How about the after-sale service?
A: Any feedback or comments are welcomed.
We will try to make the best assistant to let you maximum satisfaction.
Contact Person: Ally
