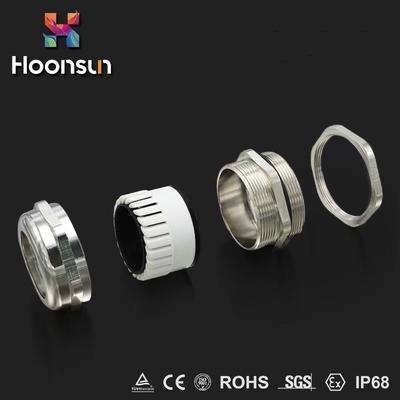

Dustproof Waterproof Cable Gland M10 With Silicone Nikelpplated Brass Cable Gland

Dustproof Waterproof Cable Gland M10 With Silicone Nikelpplated Brass Cable Gland

  • Dustproof Waterproof Cable Gland M10 With Silicone Nikelpplated Brass Cable Gland
  • Dustproof Waterproof Cable Gland M10 With Silicone Nikelpplated Brass Cable Gland
  • Dustproof Waterproof Cable Gland M10 With Silicone Nikelpplated Brass Cable Gland
Dustproof Waterproof Cable Gland M10 With Silicone Nikelpplated Brass Cable Gland
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hnx waterproof cable gland
Certification: RoHS, ISO, CE, IP68
Model Number: M Type
Payment & Shipping Terms:
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Contact Now
Detailed Product Description
Material: Nickel-plated Brass Performance: Dustproof , Waterproof
Surface Treatment: Electroplate Model NO.: M10 To M63
Temperature: -40℃ To 100℃(Static State),-20℃ To 80℃(Dynamic State) Function: Multiple - Entry
High Light:

M10 Waterproof Cable Gland

,

Multiple - Entry Cable Gland

,

M Type Waterproof Cable Gland

Dustproof Waterproof Cable Gland M10 - M63 With Silicone Nikelpplated Brass Cable Gland



Our cable gland has a wide range of uses, including not only common circuits, electric boxes, LED lights, and manufacturing industries, but also the robotics industry, wind energy industry, charging pile industry, solar industry and other industries.





Thread Specification Metric
Material Brass, nickel plated
Hermetic Seal NBR, Silicone rubber
O-Ring NBR, Silicone rubber
Claw PA,UL94-V2
Approvals CE, ROHS, REACH
Color Metallic color
Protection level In the range of the specified bayonet, use the O type seal ring to tighten the pressing head to achieve the IP68-10 bar pressure
Temperature Resistance -40℃ to 100℃, short time to 120℃
Function Extremely Easy installation, simply insert cable through the sembled gland and tighten gland locknut until cable is secured.
Advantage High Durability. These cable glands are designed to with stand water, dust, salt, acid-base, alcohol, oil and common solvent
Variety of the holes Used for 2-8 core cables, to make sure each wire to get the best waterproof insulating, and not intertwined.
Use of cable gland Industry, circuit, electrical box, Led lamp, robot industry, wind energy industry, Manufacturing industry, maintenance industry, charging pile industry, motor industry and so on.
Remarks If more holes are required, please specify the relevant parameters, such as: type specification, cable diameter, number of holes, etc.






























































Item Range
mm
GL
mm
Thread O.D.
mm
Joint Length
mm
Spanner size
mm
Code
M8×1 2-5 5 8.0 13.5 12 HX-NPM8
M10×1 3-6.5 6.5 10.0 17 14 HX-NPM10
M12×1.5 3-6.5 6.5 12.0 17 14 HX-NPM12
M14×1.5 4-8 8 14.0 18 17 HX-NPM14
M14×1.5 5-10 8 14.0 20 20/17 HX-NPM14
M16×1.5 4-8 8 16.0 19 18 HX-NPM16
M18×1.5 5-10 8 18.0 20 20 HX-NPM18
M20×1.5 6-12 8 20.0 21 22 HX-NPM20
M22×1.5 10-14 8 22.0 22 24 HX-NPM22
M24×1.5 10-14 9 24.0 22 24/27 HX-NPM24
M25×1.5 10-14 9 25.0 22 24/27 HX-NPM25-14
M25×1.5 11-16 9 25.0 25 27 HX-NPM25-16
M25×1.5 13-18 9 25.0 27 30/27 HX-NPM25-18
M27×1.5 13-18 9 27.0 27 30 HX-NPM27
M30×2 13-18 9 30.0 27 30/32 HX-NPM30
M32×1.5 15-22 10 32.0 29 35 HX-NPM32
M33×2 15-22 10 33.0 29 35/36 HX-NPM33
M36×1.5 18-25 10 36.0 31 40 HX-NPM36
M37×1.5 18-25 10 37.0 31 40 HX-NPM37
M40×1.5 18-25 11 40.0 31 40/45 HX-NPM40-25
M40×1.5 22-30 11 40.0 35 45 HX-NPM40-30
M47×1.5 25-33 11 47.0 37 50 HX-NPM47
M50×1.5 32-38 13 50.0 37 57/55 HX-NPM50
M60×1.5 37-44 14 60.0 38 64 HX-NPM60
M63×1.5 37-44 14 63.0 38 64/68 HX-NPM63





Usage method

  • Metal cable waterproof gland is the accessory of cable. The products are widely used in oil, chemical, machinery, nuclear power, shipbuilding, paper, pharmaceutical, food, aerospace and other fields.
  • The gland can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.
  • Access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.
  • Wire and cable fixed, can effectively clamp the cable and achieve the purpose of waterproofing.
  • The main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable gland to ensure its safe and reliable operation. If the sealing is bad, not only will the oil leakage cause the drying of the oil impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.



Product Introduction

Our cable gland has a wide range of uses, which can be used to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy. The cable connector has corrosion resistance and can be applied to marine operations, chemical equipment and so on.



Dustproof Waterproof Cable Gland M10 With Silicone Nikelpplated Brass Cable Gland 0
