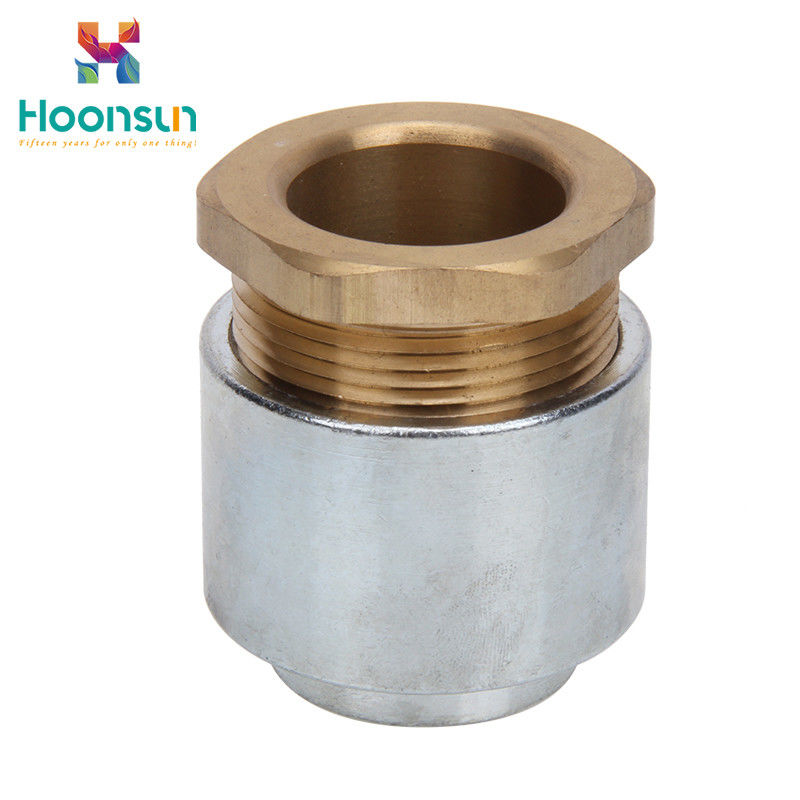

Galvanized Iron / Brass TH Type Marine Cable Gland With Nickel - Plated Hoop Washer

Galvanized Iron / Brass TH Type Marine Cable Gland With Nickel-plated Hoop Washer

TH the marine stuffing box is a welded marine stuffing box. Its material composition is as follows:

The clamping part is made of brass, the pressing part is made of high quality galvanized iron, and the clamping ring is made of nitrile rubber.

In the prescribed range, the rubber gasket is pressed tight and tight, and the water proof grade can reach IP54. under the static environment of 40 to 100, and the working temperature under the dynamic environment is 20 to 80. Marine packing letter is a high quality cable explosion-proof accessory, installed in the connection of cable port and explosion-proof electrical equipment. It has the effect of introducing cable, fixed position and achieving sealing and flameproof. It has advantages of superior explosion proof performance, safe and reliable structure, simple installation and high protection grade.

Applications: instruments, ships, machinery, electrical, transportation, medicine, oil fields, cable fixing, etc.

Remarks: the welding parts can be customized according to the thickness of the steel plate, and the special specifications can be customized.

Usage method

• Metal cable waterproof gland is the accessory of cable. The products are widely used in oil, chemical, machinery, nuclear power, shipbuilding, paper, pharmaceutical, food, aerospace and other fields.
• The gland can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.
• Access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.
• Wire and cable fixed, can effectively clamp the cable and achieve the purpose of waterproofing.
• The main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable gland to ensure its safe and reliable operation. If the sealing is bad, not only will the oil leakage cause the drying of the oil impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.

Product Introduction

Our cable gland has a wide range of uses, which can be used to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy. The cable connector has corrosion resistance and can be applied to marine operations, chemical equipment and so on.
